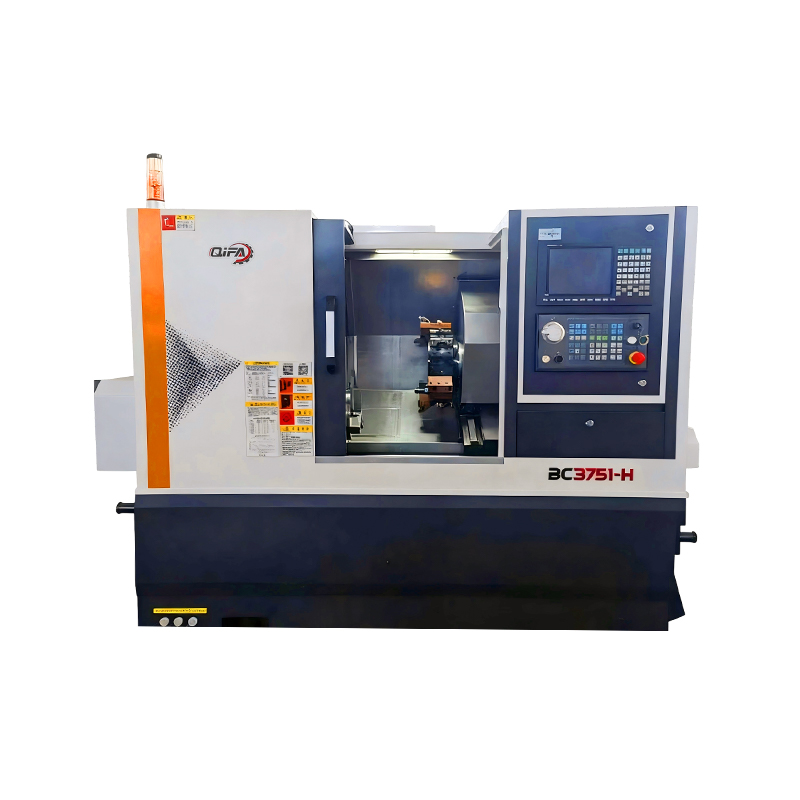

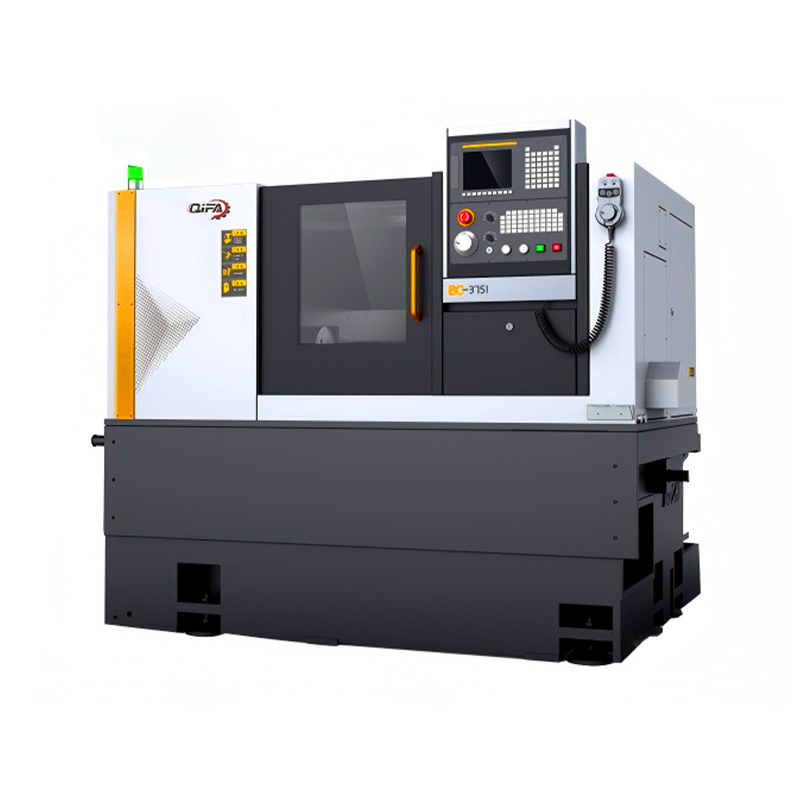

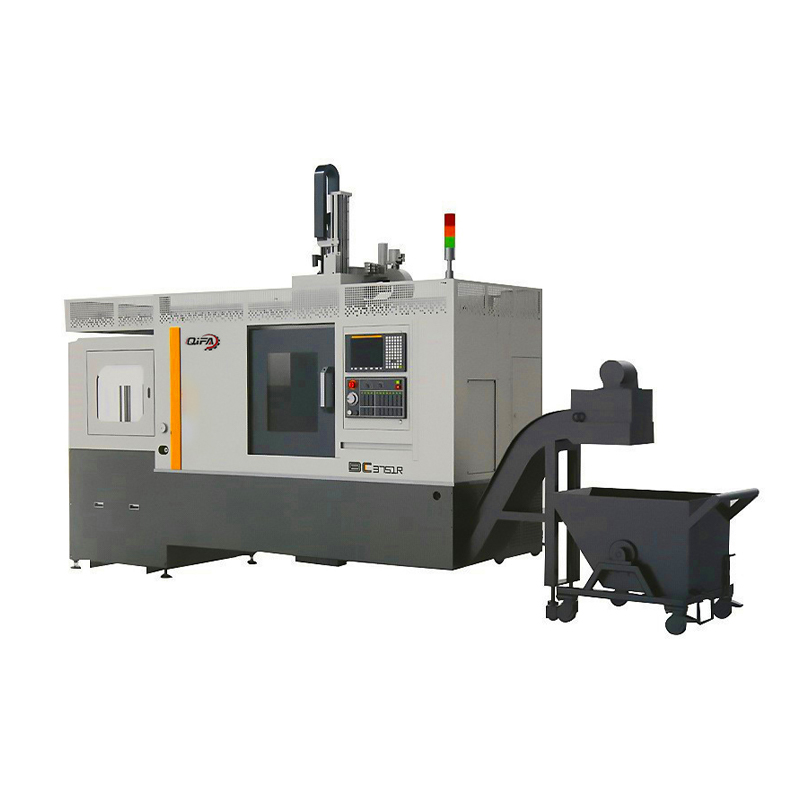

BC3751 High-Torque Slant Bed CNC Lathe

BC3751 High-Torque Slant Bed CNC Lathe is widely used for:

· Automotive shafts, bushings and transmission components
· Hydraulic valves, cylinders and precision hydraulic parts
· Engineering machinery components
· Mold bases and mechanical parts machining
· Instrument and industrial equipment component manufacturing

Rigid Integrated Machine Structure
BC3751 High-Torque Slant Bed CNC Lathe adopts an integrated high-strength cast iron bed and base, providing excellent rigidity and vibration resistance for stable machining performance.

High-Torque Precision Spindle
The spindle is driven by an 11/15 kW servo motor and supported by NSK precision bearings. With a spindle speed range of 50 to 4500 rpm, it delivers strong low-speed torque and stable cutting performance.

Fast Axis Movement
The X and Z axes use heavy-duty roller linear guideways with rapid traverse speeds of up to 30 m/min, improving positioning efficiency and machining productivity.

8-Station Hydraulic Turret
The standard hydraulic turret offers high positioning accuracy, short tool indexing time and reduced tool interference for multi-process machining.

Long Turning Capacity
With a maximum turning length of 510 mm and X/Z travel of 210/550 mm, the machine is suitable for machining longer shaft and cylindrical components.

BC3751 High-Torque Slant Bed CNC Lathe supports customized solutions for different machining requirements:

· CNC controller configuration based on production requirements
· Spindle specification customization for different workpiece materials
· Travel range adjustment according to machining requirements
· Protective enclosure and automation options
· Customized machine configuration according to customer drawings and production processes

 Standard CNC machines are available for shorter delivery cycles, while special configurations such as 5-axis machines and gantry machining centers are produced according to customer orders.

Each machine is inspected before shipment. The company provides a 12-month whole machine warranty excluding wearing parts, 24-hour online technical support and quality feedback response within 24 hours.
