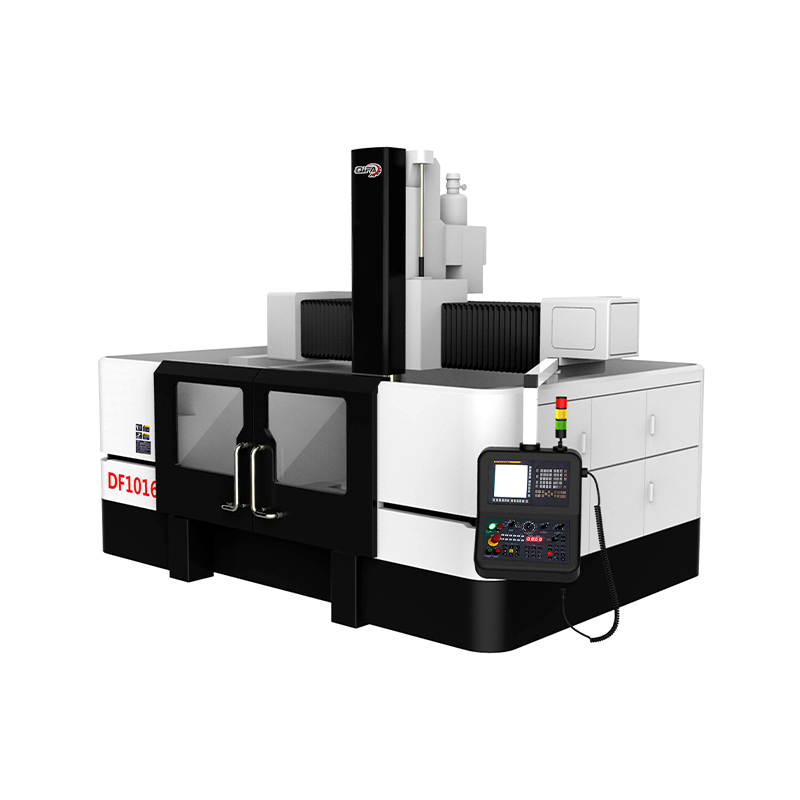

DF1016 Bridge-Type Gantry Machining Center is a heavy-duty CNC machining center designed for large-size and high-precision machining tasks. It adopts a bridge-type gantry structure with an integrated worktable and bed casting design, providing strong rigidity and stable operation. This machine is suitable for machining large molds, structural parts, and precision components that require high cutting stability and accuracy.

DF1016 Bridge-Type Gantry Machining Center is widely used for:

· Large mold manufacturing
· Energy equipment components
· Transportation equipment parts
· Metallurgical machinery components
· Heavy structural part machining

High Rigidity Structure
The bridge-type gantry design and integrated casting structure improve overall stability and help reduce deformation during heavy cutting operations.

Large Working Area
Equipped with a 1650×1400mm table, the machine supports large workpieces and complex machining requirements.

Heavy Cutting Capability
The worktable supports a maximum cutting load of 8T/m², making it suitable for high-strength machining processes.

Powerful Spindle Performance
The BT50 spindle taper and 20-6000rpm spindle speed range provide strong cutting capability for different materials and tools.

Stable Axis Movement
X/Y/Z axes use high-quality guide systems with X/Y 45mm linear guides and Z-axis hard rail structure to ensure machining stability.

Efficient Processing
Rapid traverse speeds reach 20000mm/min for X and Y axes and 16000mm/min for Z axis, improving production efficiency for large components.

Parameter	Specification
Model	DF1016
Table Size	1650 × 1400 mm
T-Slot Size	22 × 7 × 200 mm
T-Slot Accuracy	H7
Maximum Table Cutting Load	8 t/m²
X-Axis Travel	1000 mm
Y-Axis Travel	1600 mm
Z-Axis Travel	600 mm
Distance Between Two Columns	2140 mm
Distance from Spindle Nose to Table	100–700 mm
Table-to-Beam Height	880 mm
Linear Guideway Width	X: 45 mm, Y: 45 mm, Z: Hardened Guideway
Number of Linear Guideway Blocks	X: 8, Y: 4
Linear Guideways	X: 4 Heavy-Duty Ball Linear Guideways; Y: 2 Heavy-Duty Ball Linear Guideways; Z: Rectangular Hardened Guideway
Ball Screw Diameter / Lead	X: φ45 / 16 mm; Y: φ45 / 12 mm; Z: φ40 / 10 mm
Spindle Taper	BT50
Spindle Speed	20–6000 rpm
Direct Spindle Drive	1:1
Cutting Feed Rate	1–10000 mm/min
Rapid Traverse Rate	X: 20000 mm/min; Y: 20000 mm/min; Z: 16000 mm/min
Positioning Accuracy	0.01/1000 mm
Repeat Positioning Accuracy	0.008/1000 mm
Spindle Servo Motor Model	DH13-4-143-15/18.5-4-1000JG1B5-06
Maximum Power	15 kW
Three-Axis Servo Motor Model	X/Y: 180ST-M27020HMBB; Z: 180ST-M36015HMBBZ
Rated Power	X: 5.5 kW; Y: 5.5 kW; Z: 5.6 kW
Rated Torque	X: 27 Nm; Y: 27 Nm; Z: 36 Nm
X-Axis Direct Drive	1:1
Y-Axis Direct Drive	1:1
Z-Axis Direct Drive	1:1
Power Supply	Three-Phase 380 V, 50 Hz, 45 kW
Required Air Pressure	6.5 kg/cm²
Net Machine Weight	Approx. 14000 kg
Machine Dimensions (L × W × H)	7000 × 5900 × 3600 mm

This product supports customized solutions for different machining requirements:

· CNC system configuration according to customer operation requirements
· Spindle specifications adjustment for different cutting applications
· Travel range customization based on workpiece size
· Protective structure modification for different working environments
· Customized machining solutions according to drawings and production needs

Item	Details
MOQ	1 set
Standard Lead Time	Around 30 days
Payment Terms	30% T/T deposit, balance before shipment
Shipping Terms	FOB Shanghai, CIF or customized trade terms
Shipping Method	Sea shipment from Shanghai Port
Packaging	Protective wooden case packaging

Standard CNC machines are available for shorter delivery cycles, while special configurations such as 5-axis machines and gantry machining centers are produced according to customer orders.

Each machine is inspected before shipment. The company provides a 12-month whole machine warranty excluding wearing parts, 24-hour online technical support and quality feedback response within 24 hours.

Q1: What type of workpieces can DF1016 Bridge-Type Gantry Machining Center process?

A: It is suitable for large molds, energy equipment parts, transportation components, and heavy structural parts requiring stable machining performance.

Q2: What is the advantage of the bridge-type gantry structure?

A: The structure provides higher rigidity and helps reduce machining deformation during heavy cutting operations.

Q3: Can the machine be customized for different production requirements?

A: Yes. CNC system, spindle configuration, travel range, and protective structures can be adjusted according to customer requirements.

Q4: What spindle configuration does this machining center use?

A: The machine uses a BT50 spindle taper with a spindle speed range of 20-6000rpm.

Q5: What after-sales service is available for DF1016 Bridge-Type Gantry Machining Center?

A: We provide 24-hour online technical support and respond to quality feedback within 24 hours with remote troubleshooting guidance.
