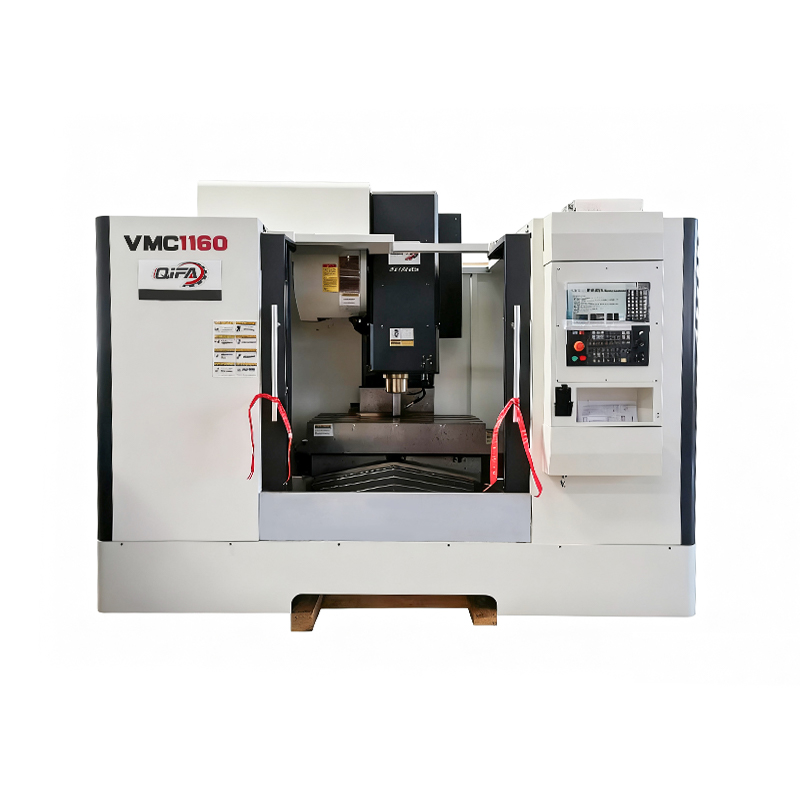

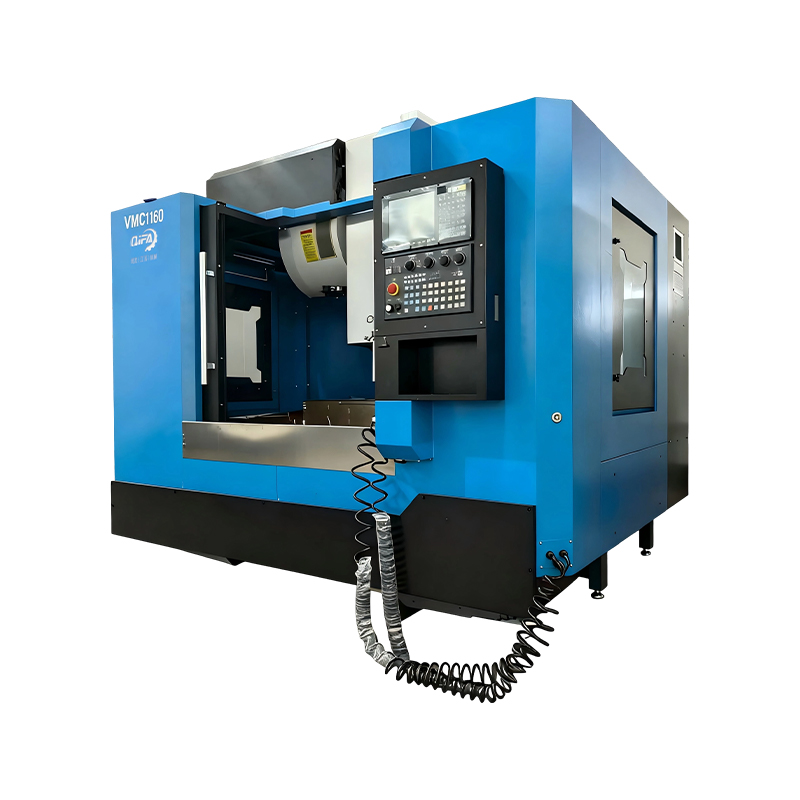

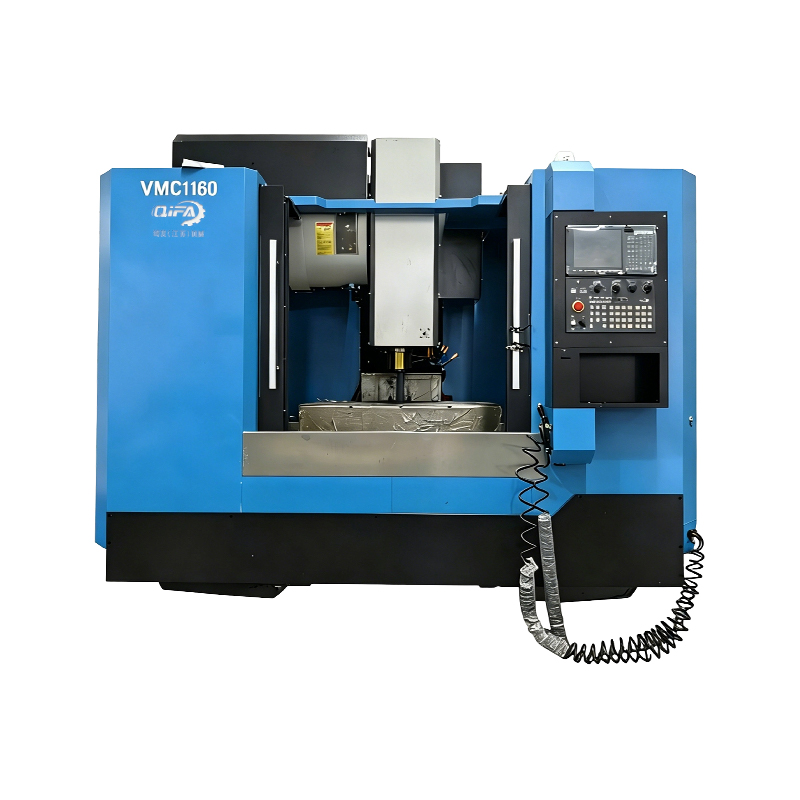

VMC1160 High-Rigidity Vertical Machining Center

VMC1160 High-Rigidity Vertical Machining Center is widely used for:

· Medium-sized automotive parts and structural components
· Medium-sized mold manufacturing and mold parts processing
· 3C and communication equipment components
· Hardware parts, valves, disc parts and box-type components
· Industrial equipment and mechanical components

High Rigidity Machine Structure
VMC1160 High-Rigidity Vertical Machining Center adopts a C-type structure with a herringbone column, box-type slide and heavy-duty base, providing enhanced rigidity and stability during demanding cutting operations.

Heavy-Duty Machining Capability

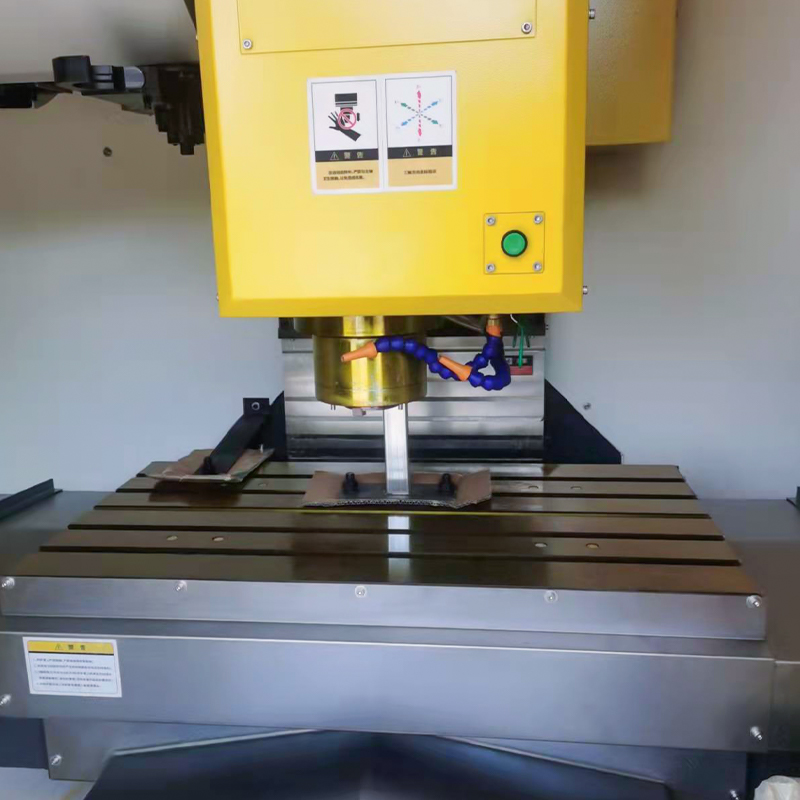

The machine is equipped with a 1200 × 600 mm worktable with a maximum load capacity of 900 kg, providing a stable working platform for medium-sized and heavier workpieces.

High Precision Feed System
XYZ axes use roller linear guideways and precision pre-stretched ball screws driven by servo motors, improving positioning accuracy and thermal stability under machining loads.

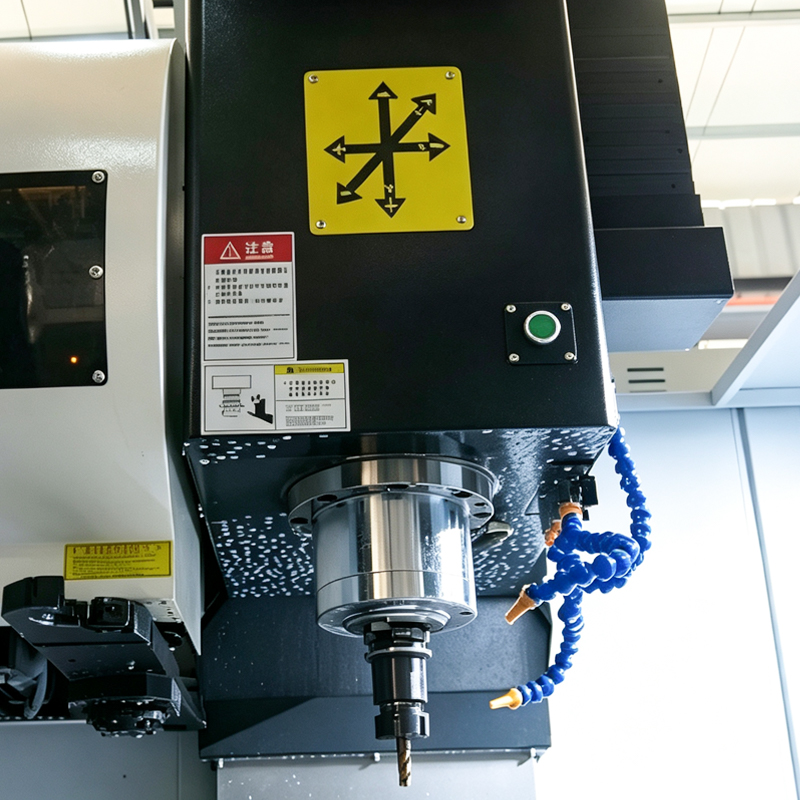

Stable BT50 Spindle Performance
The machine uses a BT50 spindle with an 11 kW spindle motor and 10000 rpm speed, providing a rigid spindle configuration for various milling and drilling applications.

Efficient Automatic Tool Changing
The 24-tool disc magazine with cam-type tool changer achieves approximately 2.5 seconds tool-to-tool changing time, helping reduce non-machining time during multi-operation machining.

VMC1160 High-Rigidity Vertical Machining Center supports customized solutions for different machining requirements:

· CNC system configuration adjustment according to production requirements
· Spindle selection and configuration changes for different materials
· XYZ travel range customization based on workpiece dimensions
· Protective structure adjustment for different operating environments
· Customized machining solutions according to workpiece drawings and processing conditions

Standard CNC machines are available for shorter delivery cycles, while special configurations such as 5-axis machines and gantry machining centers are produced according to customer orders.

Each machine is inspected before shipment. The company provides a 12-month whole machine warranty excluding wearing parts, 24-hour online technical support and quality feedback response within 24 hours.
