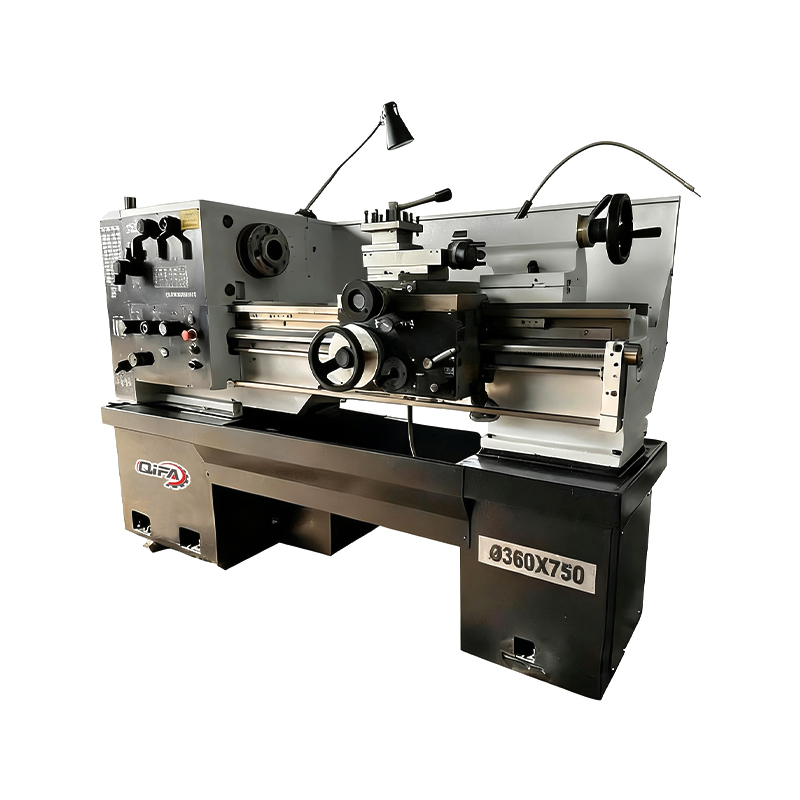

CDS6166B / CDS6166C High-Rigidity Horizontal Lathe is a conventional horizontal lathe designed for turning medium and large metal workpieces. It supports external and internal cylindrical turning, face turning, threading, drilling, boring and other general machining operations. The B and C versions offer 82 mm and 105 mm spindle bore options. With a rigid cast structure, hardened and precision-ground guideways, and a balanced spindle system, it is suitable for general machining requirements in automotive, mold, communications, medical equipment and instrumentation industries.

CDS6166B / CDS6166C High-Rigidity Horizontal Lathe is widely used for:

· Automotive components machining
· Mold and tooling production
· Hydraulic equipment parts processing
· Mechanical repair and maintenance workshops
· General machinery manufacturing

High-rigidity turning performance
The CDS6166B / CDS6166C High-Rigidity Horizontal Lathe provides a 660 mm swing over bed, 440 mm swing over cross slide and 870 mm swing in gap for larger workpieces.

Large spindle bore options
The B version uses an 82 mm spindle bore, while the C version provides a 105 mm bore for different workpiece requirements.

Rigid cast structure
The main machine body uses resin-sand high-phosphorus castings. Structural optimization through finite element analysis helps provide stable support during cutting.

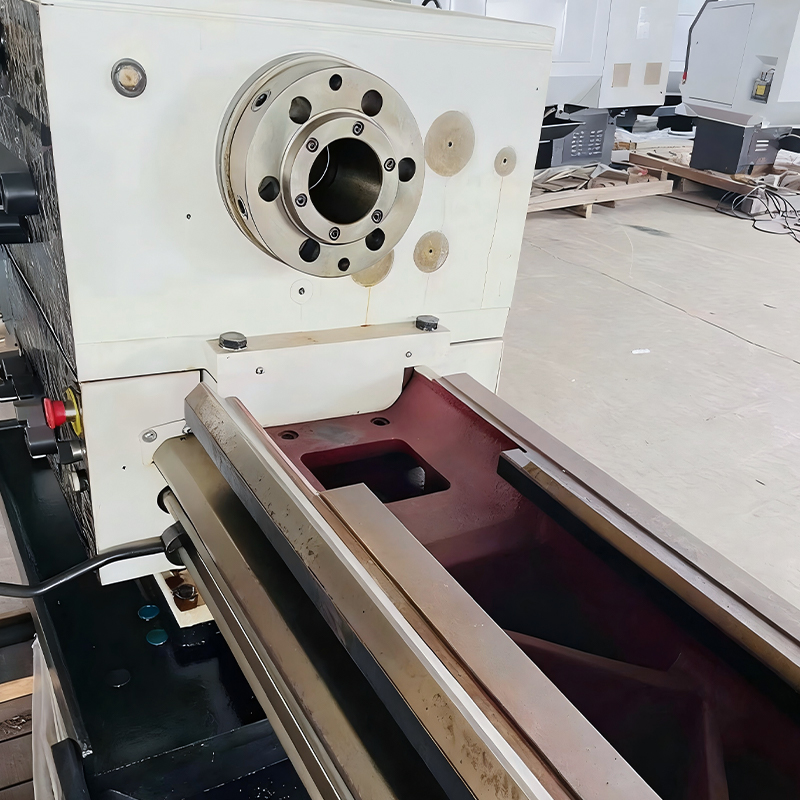

Hardened guideways
The bed guideways are high-frequency hardened and precision ground, with a stated hardness of G50 for improved wear resistance and accuracy retention.

Precision gear transmission
Headstock gears are high-frequency hardened and precision ground, with a stated gear accuracy of Grade 6 to 7.

Stable machining quality
According to the supplied specifications, dimensional accuracy can reach IT7 and surface roughness can reach Ra 1.6 under suitable machining conditions.

PRODUCT NAME		CDS6140B CDS6240B	CDS6150B CDS6250B	CDS6166B CDS6266B		CDS6150C CDS6250C	CDS6166C CDS6266C
CAPACITY
Swing over bed		400mm	500mm	660mm		500mm	660mm
Swing over cross slide		230mm	290mm	440mm		290mm	440mm
Height of centers		1100mm	1130mm	1205mm		1130mm	1205mm
Swing in gap		700mm	760mm	870mm		760mm	870mm
Gap length (from spindle nose)		280mm
Distance between centers		750mm/1000mm/1500mm/2000mm/3000mm
SPINDLE
Spindle nose		D8 or C8 (D8 only for C-series machines)
Taper of spindle bore		90 mm / 1:20				110 mm / 1:20
Spindle centre height		220mm	250mm		330mm	250mm	330mm
Spindle bore		82mm				105mm
No.of Spindle speed		16
Spindle speed ranges		26-2000 rpm				26 - 1700 rpm
Maximum spindle motor power		7.5 kW (10 HP)
BED AND SLIDE
Width over bedways		394mm
Cross slide travel - X axis		348mm			355mm	348mm	355mm
Travel of top slide		150mm
Max.dimension of tool shank		25x25mm
Cros feed		0.022-0.74mm/rev
Longitudinalo feed		0.044-1.48mm/rev
Number of Imperial Pitches		47
Range of Imperial Pitches		7 / 16 - 80TPI
Number of Diametral Pitches		47
Range of Diametral Pitches		7/8 - 160DP
Number of Metric Pitches		73 (53 Imperial-system machine tools)
Range of Metric Pitches		0.35 - 80mm
Number of Module Pitches		45 (66 Imperial-sized machine tools)
Range of Module Pitches		0.2 - 40 MOD
Longitudinal rapid travelling speed		4 m/mim
Traosverse rapid travelling speed		1.5 m/mim
TAILSTOCK
Tailstock quill diameter		75mm
Tailstock quill taper		No 5 MT
Tailstock quill travel		150mm
SPACE AND WEIGHT
Overall machine length		2350mm/2600mm/3100mm/3600mm/3000mm
Overall machine width		1226mm
Overall machine height		1390mm	1440mm	1520mm		1440mm	1520mm
Overall machine weight
Distance between centers	750mm	2070kg	2120kg	2170kg		2120kg	2170kg
	1000mm	2120kg	2170kg	2220kg		2170kg	2220kg
	1500mm	2170kg	2220kg	2270kg		2220kg	2270kg
	2000mm	2280kg	2330kg	2380kg		2330kg	2380kg
	3000mm	3060kg	3110kg	3200kg		3110kg	3200kg
PRODUCT NAME		CDS6140B CDS6240B	CDS6150B CDS6250B	CDS6166B CDS6266B		CDS6150C CDS6250C	CDS6166C CDS6266C

CDS6166B / CDS6166C High-Rigidity Horizontal Lathe supports customized solutions for different machining requirements:

· CNC system configuration adjustment
· Spindle specification customization
· Working range modification
· Protective structure adjustment
· Special tooling and accessory configuration according to drawings and processing requirements

Item	Details
MOQ	1 set
Standard Lead Time	Around 30 days
Payment Terms	30% T/T deposit, balance before shipment
Shipping Terms	FOB Shanghai, CIF or customized trade terms
Shipping Method	Sea shipment from Shanghai Port
Packaging	Protective wooden case packaging

Standard CNC machines are available for shorter delivery cycles, while special configurations such as 5-axis machines and gantry machining centers are produced according to customer orders.

Each machine is inspected before shipment. The company provides a 12-month whole machine warranty excluding wearing parts, 24-hour online technical support and quality feedback response within 24 hours.

Q1: What is the spindle bore of the B and C versions?

A: The B version has an 82 mm spindle bore, while the C version has a 105 mm spindle bore.

Q2: What is the maximum swing over the bed?

A: The maximum swing over the bed is 660 mm, with a 440 mm swing over the cross slide and an 870 mm swing in gap.

Q3: What materials can this horizontal lathe process?

A: It can process steel, cast iron, non-ferrous metals and non-metallic materials.

Q4: Can the machine configuration be customized?

A: Yes. Spindle configuration, voltage, tool post, steady rest and protective structure can be adjusted according to project requirements.

Q5: What after-sales support is available for the CDS6166B / CDS6166C High-Rigidity Horizontal Lathe?

A: The machine is covered by a 12-month whole-machine warranty excluding wearing parts. Online technical support and remote troubleshooting guidance are also available.
