DXH28-2204WZ High-Precision Moving Gantry Machining Center-Qi Fa (Jiangsu) Machinery Co., Ltd.

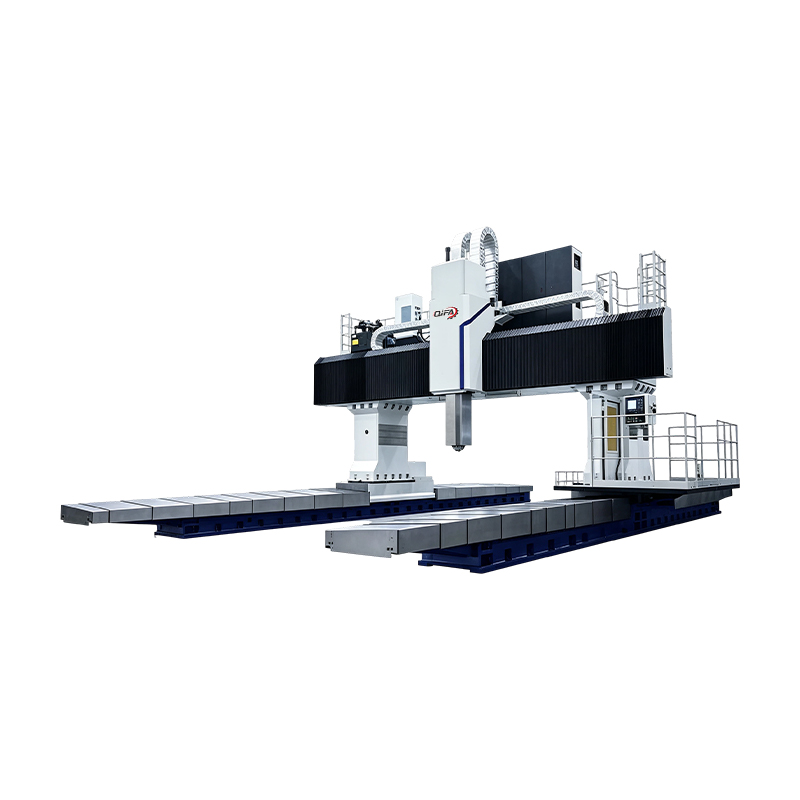

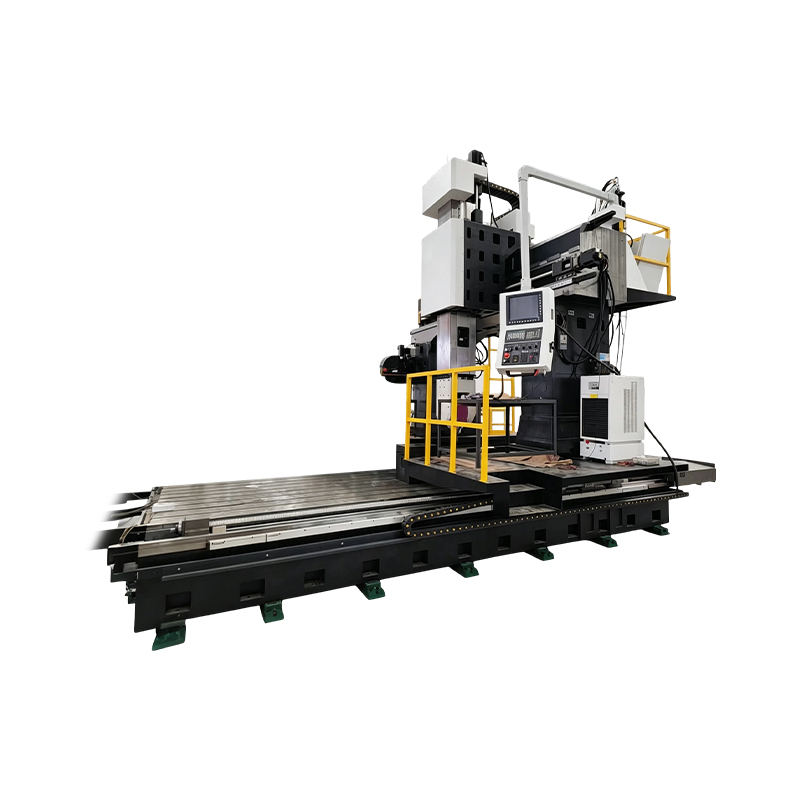

DXH28-2204WZ High-Precision Moving Gantry Machining Center is designed for high-precision and high-efficiency machining of large components. Its rigid gantry structure and coordinated mechanical, electronic and hydraulic systems provide stable machining performance and long-term accuracy retention. The machine supports multiple operations after a single workpiece setup, including plane, step, slot, complex surface, cavity, drilling, reaming and rigid tapping. Modular configurations allow different travels, tool magazines and automatic or manual angle milling heads according to machining requirements.

DXH28-2204WZ High-Precision Moving Gantry Machining Center is widely used for:

· Bridge and railway equipment components
· Energy and power equipment parts
· Shipbuilding components
· Chemical equipment manufacturing
· Large mechanical structure machining

Thermally Stable Spindle System
The spindle bearing assembly and transmission system use professional imported components with a constant-temperature cooling circuit, helping stabilize spindle and guideway temperatures and reduce thermal deformation.

Precision Ball Screw Transmission
The ball screws use fixed-end support with imported precision bearing assemblies and bidirectional pre-stretching, improving feed rigidity, positioning performance and service life.

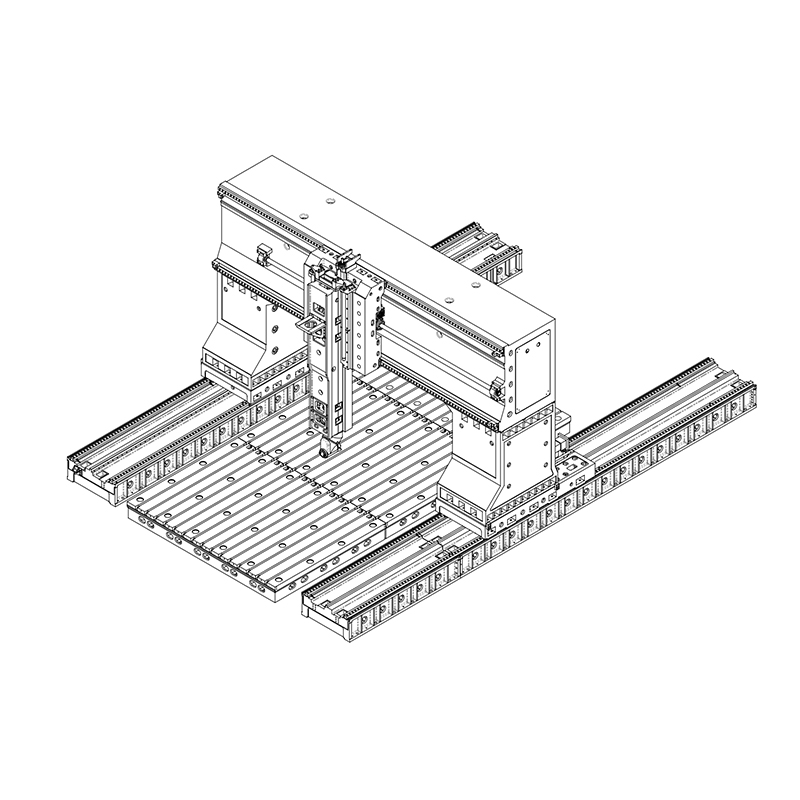

High-Precision X-Axis Guideways
The X-axis uses four sets of heavy-duty linear roller guideways, providing low friction, high sensitivity, low vibration at high speed and stable movement at low speed.

Rigid Y-Axis Guide Structure
The Y-axis crossbeam uses two sets of heavy-duty linear guideways in a stepped arrangement with a large span, providing strong resistance to bending and torsional deformation.

Multi-Process Machining Capability
The machine can continuously perform plane, step, slot, complex surface, cavity, drilling, reaming and rigid tapping operations after a single workpiece setup, reducing repeated positioning and improving machining efficiency.

Category	Parameter	Specification
Model	Model	DXH28-2204WZ
Worktable	Table Size	2200 × 4000 mm
	Distance Between Two Columns	2800 mm
	Maximum Permissible Load	40 t
	T-Slot Size	28 mm
Machining Range	Maximum Gantry Travel – X-Axis	4200 mm (Evenly Distributed on the Worktable)
	Maximum Slide Travel – Y-Axis	3200 mm
	Maximum Slide Travel – Z-Axis	1200 mm
	Distance from Spindle Nose to Table Surface	Maximum: 1550 mm; Minimum: 350 mm
Spindle	Spindle Taper	HSK-A63
	Speed Range	40–18000 r/min
	Maximum Output Torque	150 N·m (Continuous / 30 min)
	Spindle Motor Power	30 kW (Continuous / 30 min)
	Spindle Cross-Section Dimensions	400 × 400 mm

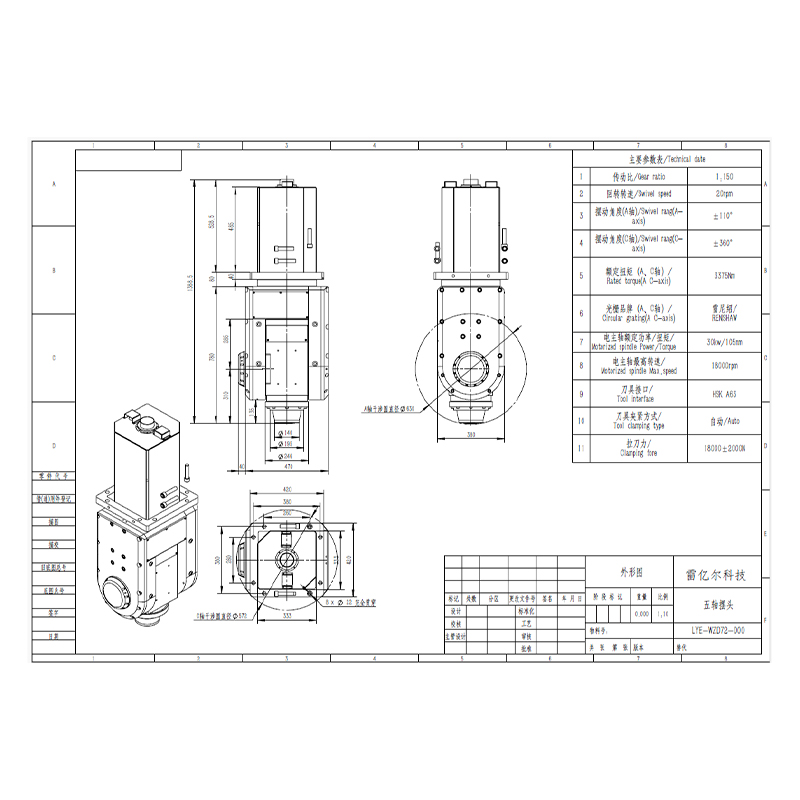

	5-Axis Dual Swivel Head	Renishaw
Feed	Cutting Feed Rate Range	1–6000 mm/min
	X-Axis Rapid Traverse	10 m/min
	Y-Axis Rapid Traverse	12 m/min
	Z-Axis Rapid Traverse	12 m/min
Machine Positioning Accuracy	X-Axis	0.014/2000 mm (Linear Scale, GB/T 19362.2-2017)
	Y-Axis	0.03 mm (Linear Scale)
	Z-Axis	0.012 mm (Linear Scale)
Repeat Positioning Accuracy	X-Axis	0.010/2000 mm
	Y-Axis	0.025 mm
	Z-Axis	0.01 mm
Machine Weight	Machine Weight	48 t
Power Capacity	Power Capacity	80 kVA

This product supports customized solutions for different machining requirements:

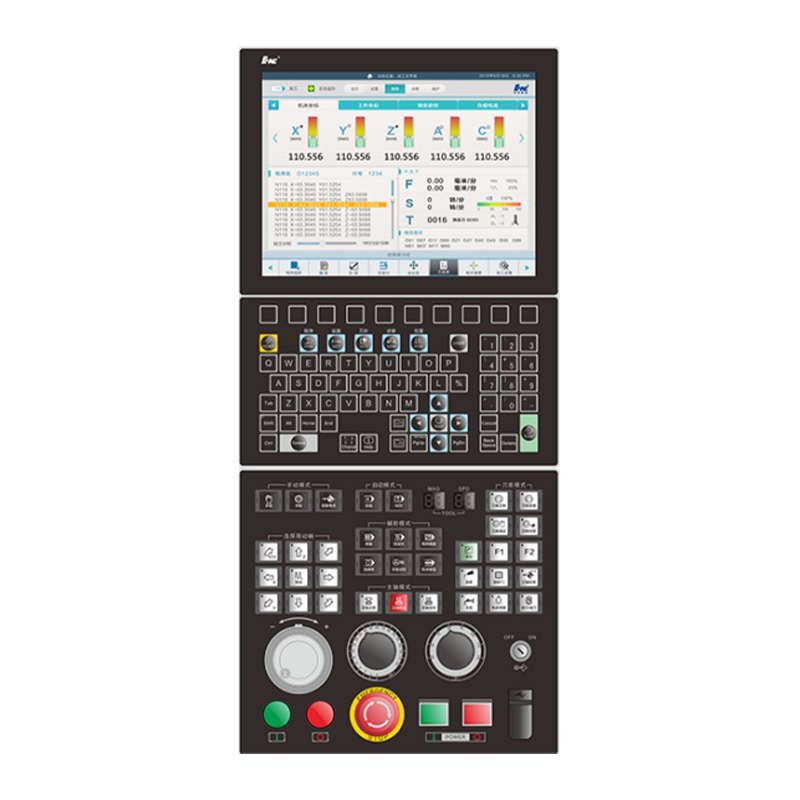

· CNC system selection according to customer production needs
· Spindle configuration adjustment for different processing applications
· Customized X/Y/Z axis travel based on workpiece dimensions
· Automatic or manual angle milling head configuration
· Tool magazine and auxiliary equipment customization
· Protective structure adjustment for different working environments

Item	Details
MOQ	1 set
Standard Lead Time	Around 30 days
Payment Terms	30% T/T deposit, balance before shipment
Shipping Terms	FOB Shanghai, CIF or customized trade terms
Shipping Method	Sea shipment from Shanghai Port
Packaging	Protective wooden case packaging

Standard CNC machines are available for shorter delivery cycles, while special configurations such as 5-axis machines and gantry machining centers are produced according to customer orders.

Each machine is inspected before shipment. The company provides a 12-month whole machine warranty excluding wearing parts, 24-hour online technical support and quality feedback response within 24 hours.
