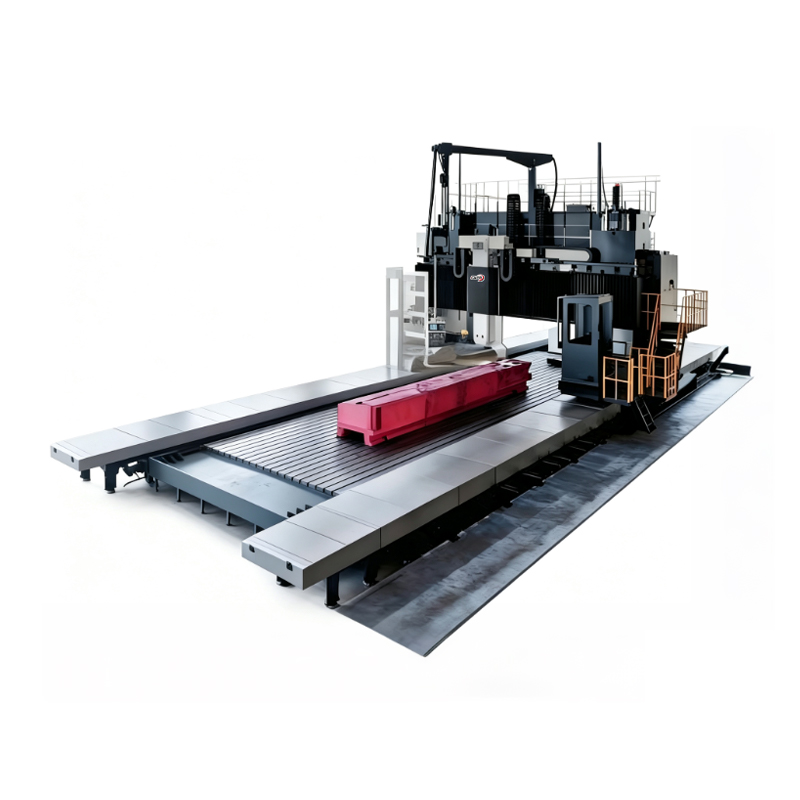

DXH50-4218D Heavy-Duty Moving Gantry Machining Center is widely used for:

· Large mold machining
· Energy equipment components
· Heavy mechanical parts
· Plate and box type components
· Precision structural parts manufacturing

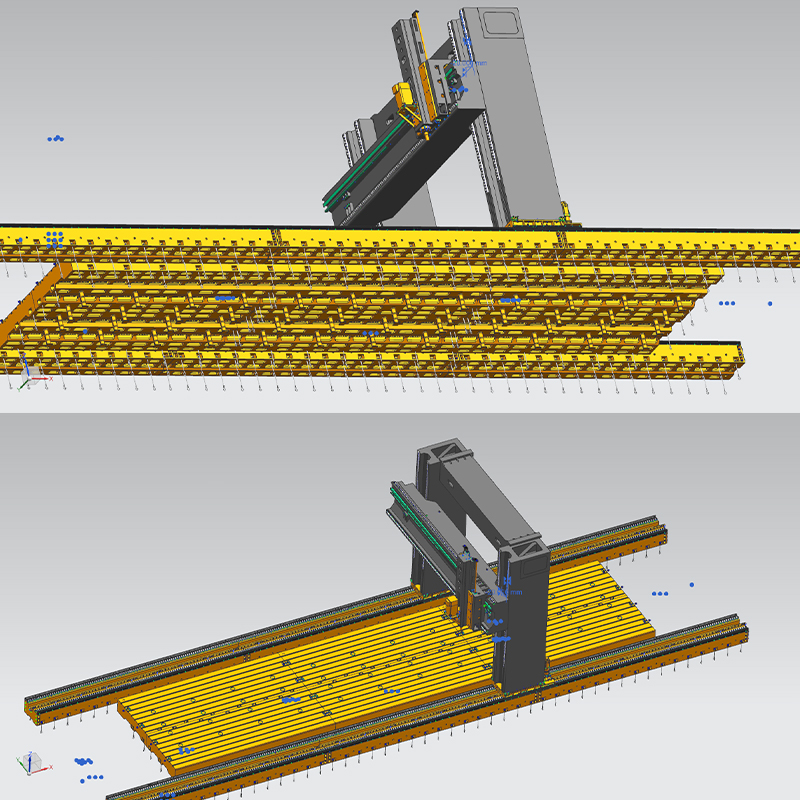

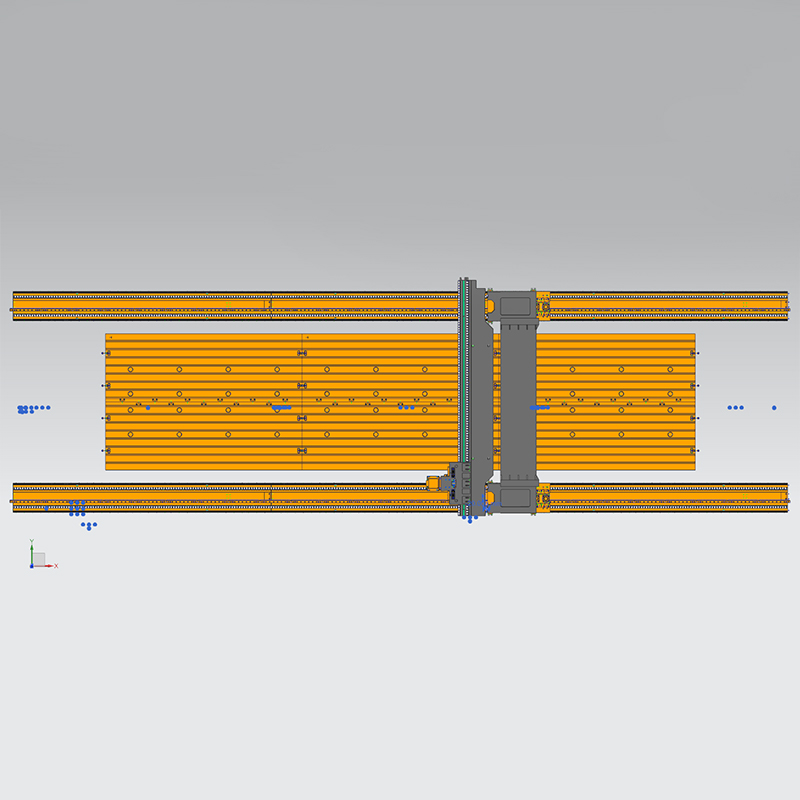

Heavy-Duty HT300 Machine Structure
The slide, saddle, bed, crossbeam, columns and base use HT300 high-strength cast iron, providing strong structural support and stability during heavy cutting.

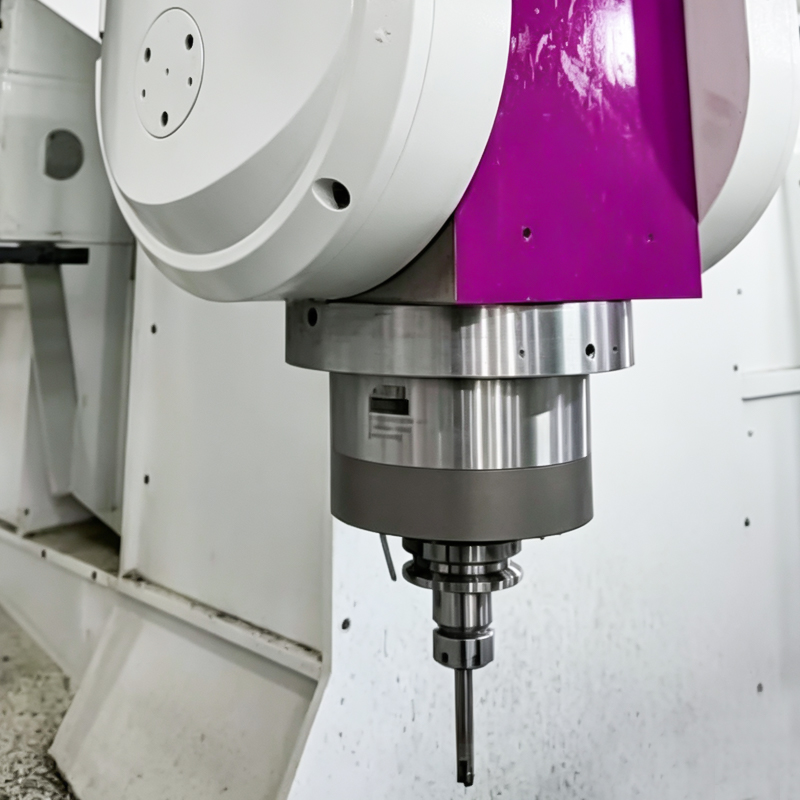

High-Torque Spindle Assembly
The spindle assembly uses specialized NSK spindle bearings and is designed for high precision, high performance, high torque and smooth transmission, supporting demanding machining operations.

Modular Spindle Head Configuration
The modular structure supports manual and automatic spindle head changes, with special spindle angle heads available for customer-specific applications such as five-axis machining.

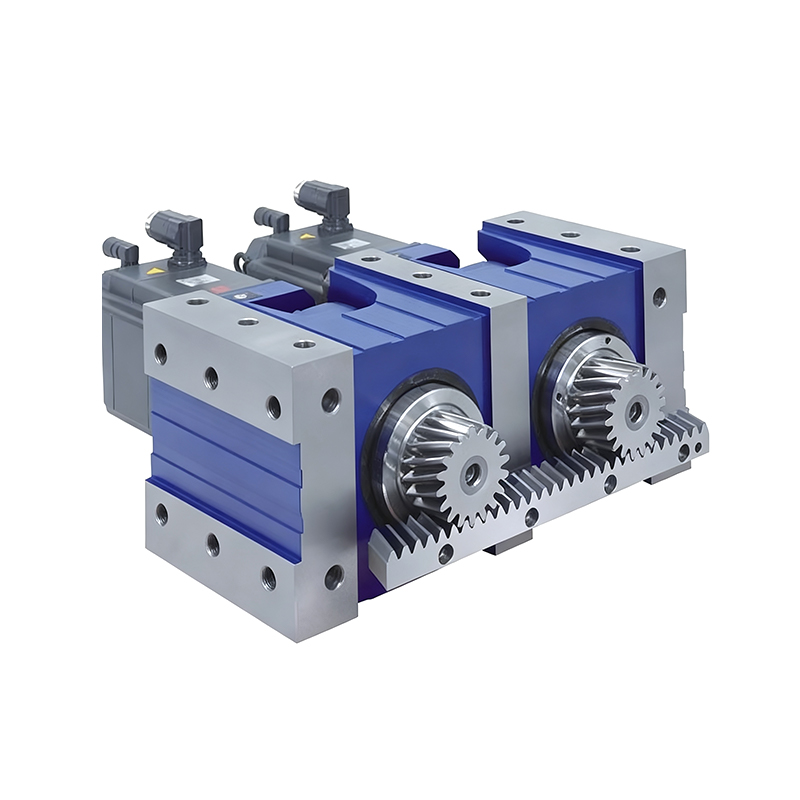

Rigid Servo Feed System
The three-axis feed drives use HNC Huada series AC servo feed motors, supporting rigid and precise ball screw feeding. The guideways also feature automatic lubrication for extended operation.

Reliable Cooling and Chip Removal
A large-capacity cooling pump provides cooling for the spindle, tools and workpieces. A configurable dual-row hinged chip conveyor and chip collection box support efficient chip removal during machining.

Category	Parameter	Specification
Model	-	DXH50-4218D
Worktable	Table Length × Width	4200 × 18000 mm
	Table Load Capacity	15 t/m²
	T-Slot Width	28 mm
	Maximum Workpiece Height	2500 mm
Spindle	Spindle Quantity	1
	Spindle Taper	ISO No.50, Taper 7/24 or BT50
	Tool Holder	BT50/45* with Cooling Hole or BT50
	Spindle Speed	10–6000 r/min (10–1200 r/min, Gear Ratio 1.5)
	Spindle Motor Power	54 kW
	Maximum Spindle Torque	1000 Nm (S1), 1200 Nm (S6)
	Distance from Spindle Nose to Table Surface	3500 mm
Gantry Passage Width	Maximum Gantry Passage Width	5000 mm
5-Axis Dual Rotary Head	Torque Transmission Ratio	1:1
	Gear Ratio	1:1
	A-Axis Rotation Angle	±110°
	C-Axis Rotation Angle	±360°
Gantry Longitudinal Travel (X-Axis)	Maximum X-Axis Travel	18200 mm
	X-Axis Traverse Speed	2–8000 mm/min
	X-Axis Working Speed	2–3000 mm/min
	X-Axis Servo Motor Torque	70 Nm
Power Head Transverse Travel (Y-Axis)	Maximum Y-Axis Travel	5500 mm
	Y-Axis Traverse Speed	2–8000 mm/min
	Y-Axis Working Speed	2–3000 mm/min
	Y-Axis Servo Motor Torque	36 Nm
Vertical Ram Feed (Z-Axis)	Maximum Z-Axis Travel	1500 mm
	Z-Axis Traverse Speed	2–8000 mm/min
	Z-Axis Working Speed	2–3000 mm/min
	Z-Axis Hardened Guideway Square Slider	450 × 450 mm
	Z-Axis Servo Motor Torque with Brake	50 Nm
Gantry Beam Travel (W-Axis)	Maximum W-Axis Travel	1500 mm
Beam Lifting Servo Motor	W1/W2 Servo Motor Torque with Brake	50 Nm
Beam Lifting Servo Motor	W-Axis Traverse Speed	2–2000 mm/min
Positioning Accuracy	X-Axis	≤0.01/300; ≤0.05 (Full Travel)
	Y-Axis	≤0.01/300; ≤0.038 (Full Travel)
	Z-Axis	≤0.01/300; ≤0.018 (Full Travel)
	A/C-Axis	≤8 arcsec
Repeat Positioning Accuracy	X-Axis	≤0.032 mm
	Y-Axis	≤0.024 mm
	Z-Axis	≤0.012 mm
	A/C-Axis	≤8 arcsec
Geometric Accuracy	X-Axis to Y-Axis Perpendicularity	0.03/500 mm
	X-Axis to Z-Axis Perpendicularity	0.02/300 mm
	Y-Axis to Z-Axis Perpendicularity	0.02/300 mm
	Spindle-to-Table Parallelism during C-Axis Rotation	0.035/300 mm
	Radial Runout at L=300 mm	0.07 mm
Hydraulic System	Hydraulic Pump Pressure / Flow Rate	7 MPa / 30 L/min
Hydraulic System	Hydraulic Pump Motor Power	3.75 kW
Cooling System	High-Pressure Cooling Pump Pressure	5 MPa

This product supports customized solutions for different machining requirements:

· CNC system selection according to production needs
· Spindle head and angle head customization
· Travel range adjustment for special workpieces
· Protective structure customization for different environments
· Machining solutions based on customer drawings and production processes

Item	Details
MOQ	1 set
Standard Lead Time	Around 30 days
Payment Terms	30% T/T deposit, balance before shipment
Shipping Terms	FOB Shanghai, CIF or customized trade terms
Shipping Method	Sea shipment from Shanghai Port
Packaging	Protective wooden case packaging

Standard CNC machines are available for shorter delivery cycles, while special configurations such as 5-axis machines and gantry machining centers are produced according to customer orders.

Each machine is inspected before shipment. The company provides a 12-month whole machine warranty excluding wearing parts, 24-hour online technical support and quality feedback response within 24 hours.

Q1: What type of workpieces can DXH50-4218D Heavy-Duty Moving Gantry Machining Center process?

A: It is suitable for large plate parts, box parts, molds, structural components, and heavy mechanical parts requiring high rigidity machining.

Q2: What is the advantage of the moving gantry structure?

A: The moving gantry structure provides stable support for large workpieces and improves machining accuracy during heavy cutting operations.

Q3: Can the spindle configuration be customized?

A: Yes. The machine supports manual or automatic spindle head replacement and can be configured with special angle heads according to machining requirements.

Q4: Which CNC systems can be used with this machining center?

A: The standard configuration uses the Huazhong CNC 848Di system. Other CNC systems can be selected according to customer requirements.

Q5: What after-sales service is provided for DXH50-4218D Heavy-Duty Moving Gantry Machining Center?

A: We provide 24-hour online technical support, quality feedback response within 24 hours, and remote troubleshooting assistance.
