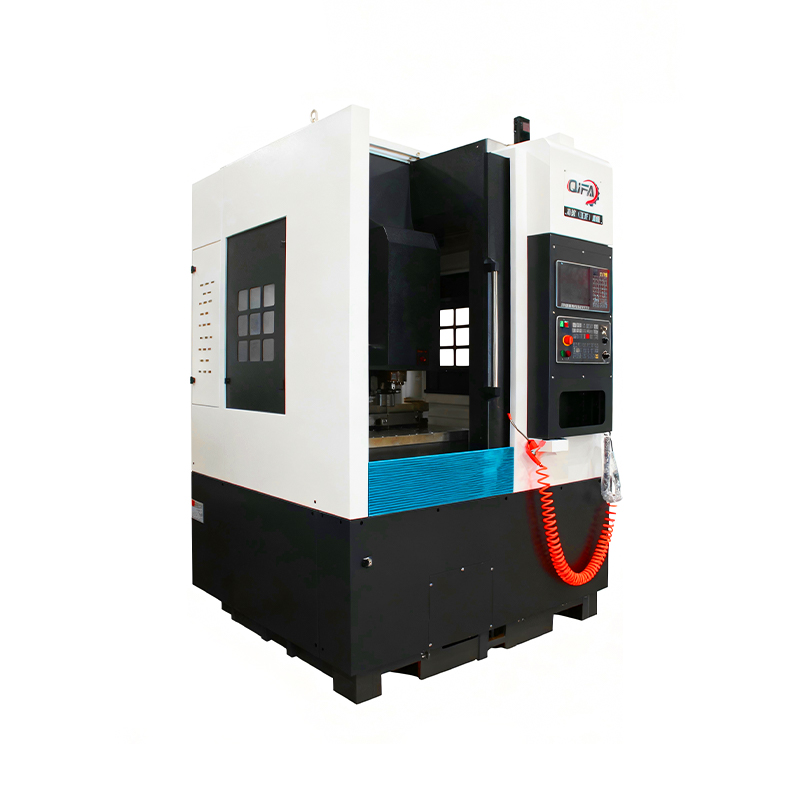

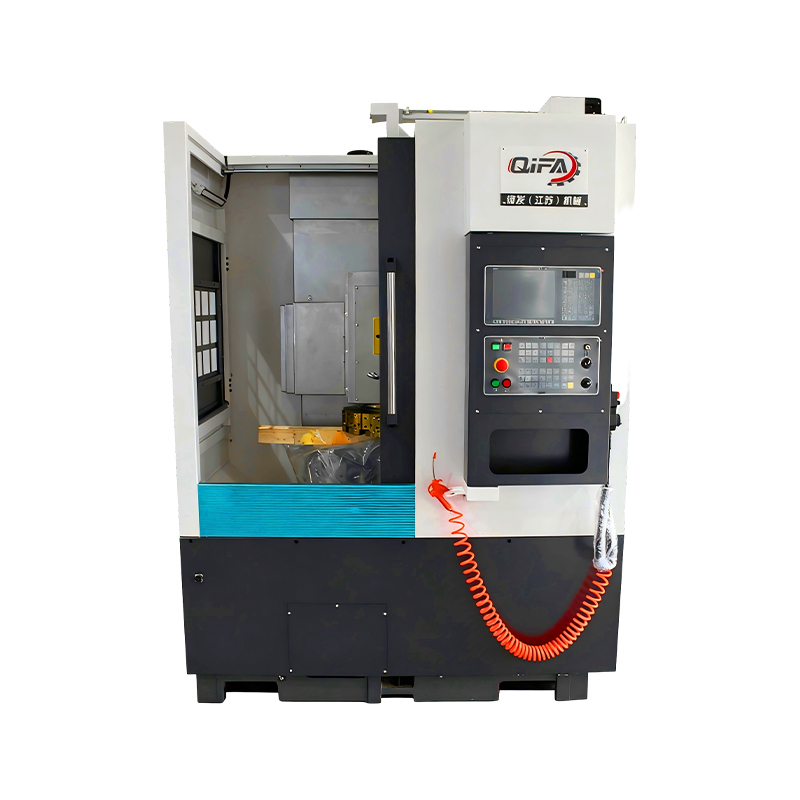

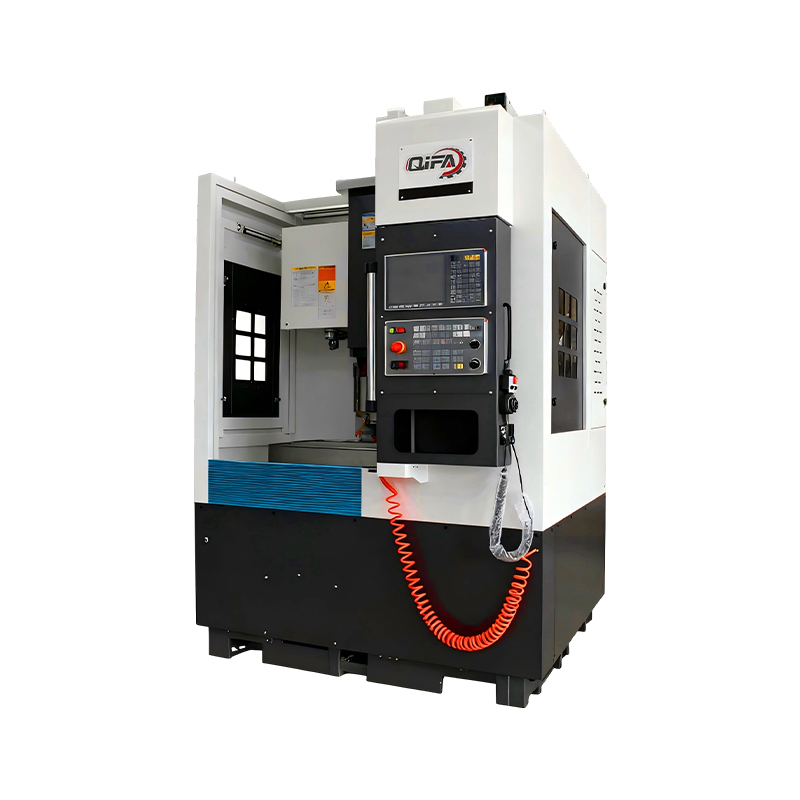

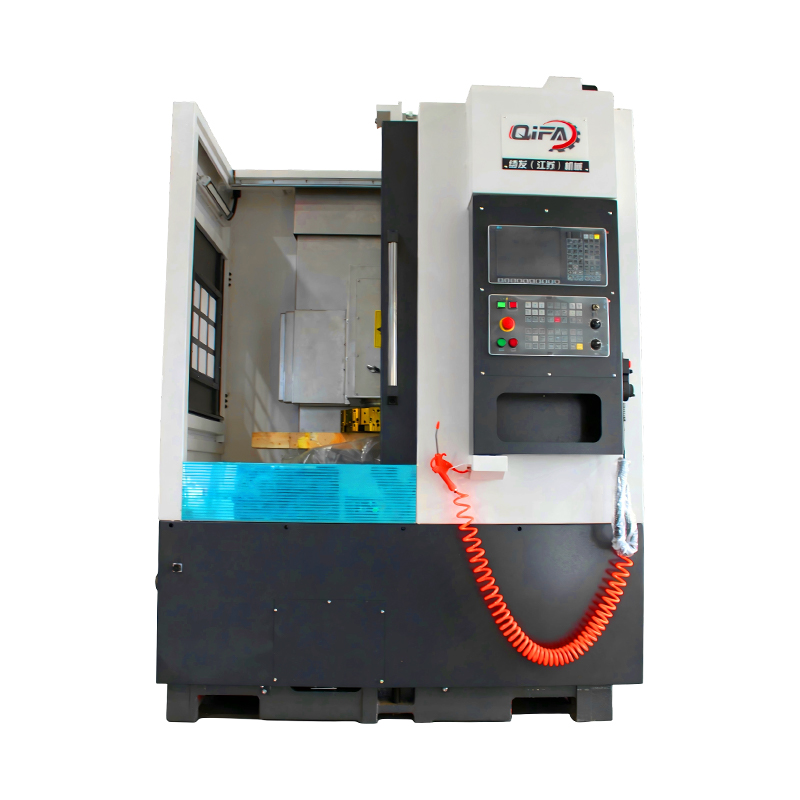

VTC500 High-Rigidity Vertical Lathe is a CNC vertical lathe designed for efficient and precise machining of disc parts and short sleeve components. With a maximum swing diameter of 500 mm and a maximum turning diameter of 400 mm, it can handle turning operations including inner and outer surfaces, end faces, grooves, arcs and threads. The machine is suitable for automotive, aerospace and general machinery manufacturers requiring stable production performance.

VTC500 High-Rigidity Vertical Lathe is widely used for:

· Automotive component machining
· Aerospace structural part processing
· Mechanical equipment parts manufacturing
· Precision disc and sleeve component production
· General industrial machining

Flexible Spindle Performance
VTC500 High-Rigidity Vertical Lathe supports a spindle speed range of 50–1250 rpm with a maximum output torque of 350 Nm, providing low-speed high-torque cutting and stable high-speed machining.

Efficient Tool Management
The standard horizontal 8-position servo turret supports bidirectional tool selection and hydraulic locking for fast and reliable tool changes.

Precision Feed System
Equipped with precision ball screws and 45 mm linear guides on X/Z axes to ensure smooth movement and accurate positioning.

Advanced CNC Control

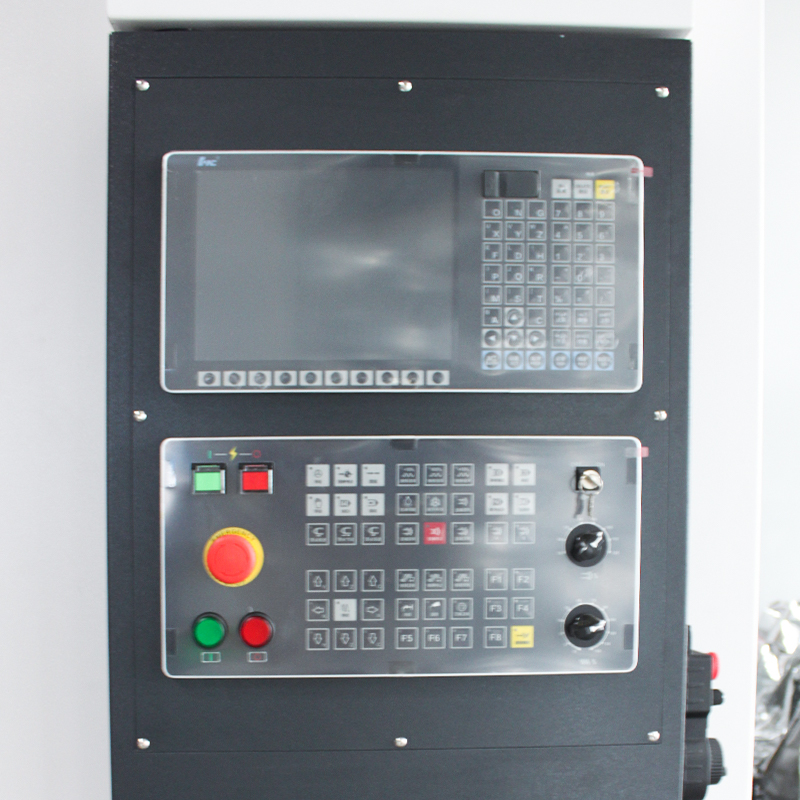

Standard configuration supports the HNC CNC system, with optional Siemens, GSK and KND CNC systems for different customer requirements.

Stable Operation Design

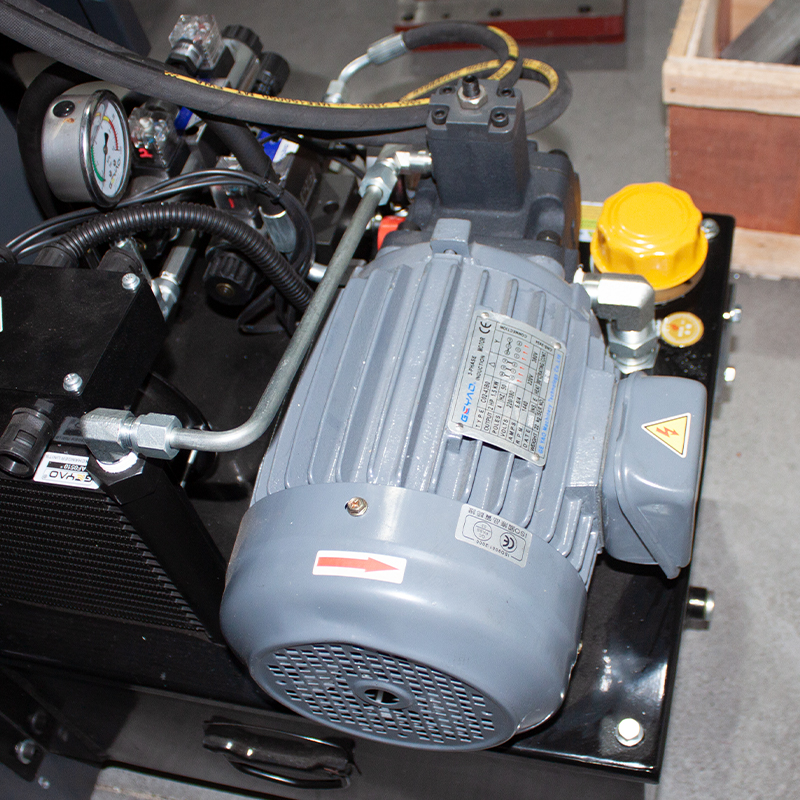

The hydraulic system, balance cylinder and automatic lubrication system work together to support reliable machine operation during long-term machining.

Parameter	Specification
Equipment Model	VTC500
Maximum Swing Diameter	500 mm
Maximum Turning Diameter	400 mm
Spindle Nose Type	A2-8
Spindle Bearing Diameter	120 mm
Spindle Speed Range	50–1250 rpm
Spindle Output Torque	350 Nm
Chuck Diameter	12" HYD
Turret Type	Horizontal 8-Position
Turret Size	100 mm
Tool Size	25 / φ40 mm
Turret X-Axis Travel	-325 mm
Turret Z-Axis Travel	500 mm
Distance from Turret Bottom to Chuck Top	0–500 mm
X/Z Linear Guideway	45 Ball Type
X/Z Lead Screw Diameter	φ40 mm
X-Axis Rapid Traverse	15 m/min
Z-Axis Rapid Traverse	12 m/min
Cutting Feed Rate	0.1–5000 m/min
X-Axis Motor Power / Torque	1.6 kW / 10 Nm
Z-Axis Motor Power / Torque	2.4 kW / 15 Nm
Main Motor Power / Torque	11 kW / 15–140 Nm
Overall Dimensions (L × W × H)	1.8 × 1.8 × 2.5 m
Machine Weight	4200 kg

This product supports customized solutions for different machining requirements:

· CNC system selection including FANUC, Siemens, GSK and KND
· Spindle configuration adjustment
· Travel range modification
· Protective structure customization
· Tooling and fixture solutions based on workpiece drawings

Item	Details
MOQ	1 set
Standard Lead Time	Around 30 days
Payment Terms	30% T/T deposit, balance before shipment
Shipping Terms	FOB Shanghai, CIF or customized trade terms
Shipping Method	Sea shipment from Shanghai Port
Packaging	Protective wooden case packaging

Standard CNC machines are available for shorter delivery cycles, while special configurations such as 5-axis machines and gantry machining centers are produced according to customer orders.

Each machine is inspected before shipment. The company provides a 12-month whole machine warranty excluding wearing parts, 24-hour online technical support and quality feedback response within 24 hours.
