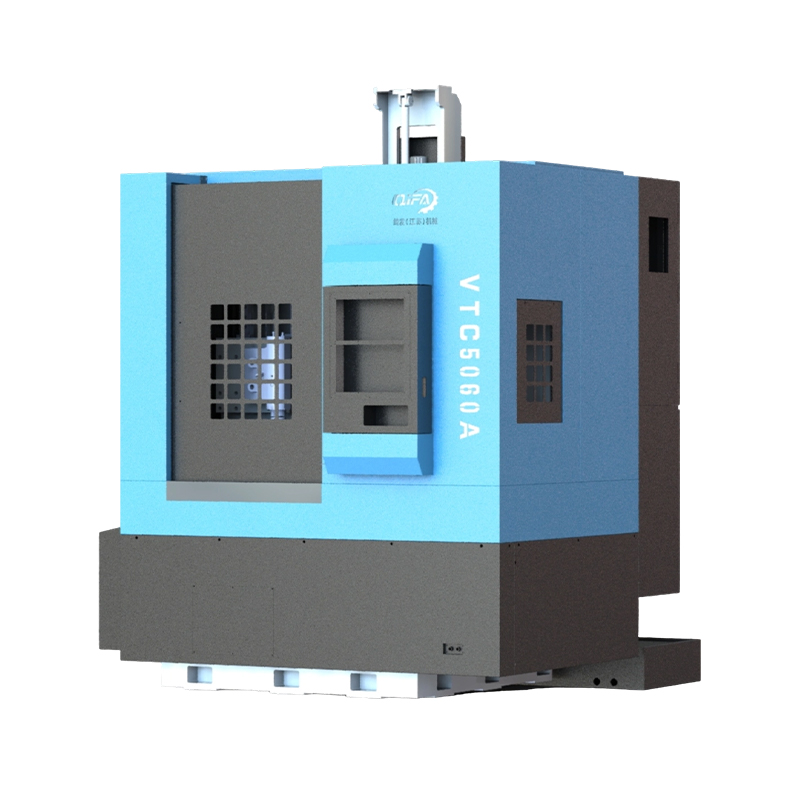

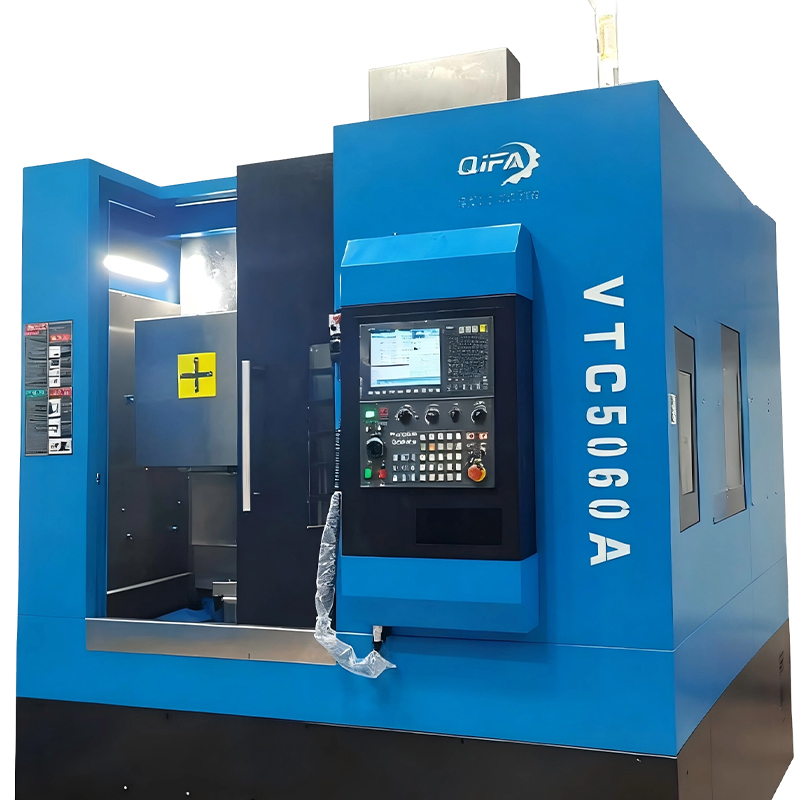

VTC5060 High-Precision Vertical Lathe with Tailstock is a CNC vertical lathe designed for high-precision machining of rotary parts such as shafts and discs. It integrates a rigid structure, precision transmission system, and CNC control technology to support turning and boring operations with stable performance. With automated processing capability, this machine is suitable for batch production and flexible manufacturing in industries requiring consistent machining accuracy.

VTC5060 High-Precision Vertical Lathe with Tailstock is widely used for:

· Automotive parts machining
· Mold component processing
· Aerospace precision parts
· Construction equipment components
· General mechanical parts manufacturing

High Rigidity Machining Structure
VTC5060 High-Precision Vertical Lathe with Tailstock adopts a rigid structural design with a maximum turning diameter of 400mm, supporting stable cutting performance for various metal materials.

Precision Spindle System
Equipped with an A2-8 spindle nose and 120mm spindle bearing diameter, the spindle provides reliable support for continuous machining operations.

Strong Clamping Performance
The standard 12-inch hydraulic chuck provides stable workpiece holding force and is suitable for precision machining processes.

Efficient Tool Management
The standard horizontal 8-position hydraulic turret offers fast tool changing and strong clamping capability.

High Precision Transmission
X/Z axes use 45 roller linear guides and precision ball screws with dedicated bearings to improve positioning accuracy and cutting rigidity.

Reliable Electrical System
The modular electrical system with heat exchange design helps maintain stable operation in high-temperature and high-humidity environments.

Parameter	Specification
Model	VTC5060
Maximum Swing Diameter	500 mm
Maximum Turning Diameter	400 mm
Spindle Nose Type	A2-8
Spindle Bearing Diameter	120 mm
Spindle Speed Range	50–1250 rpm
Spindle Output Torque	350 Nm
3-Jaw Hydraulic Chuck Diameter	12 in
Turret Type	Horizontal 8-Station
Turret Size	100 mm
Tool Size	25 / φ40 mm
X-Axis Travel	-325 mm
Z-Axis Travel	500 mm
Distance from Turret Bottom to Chuck Top	0–500 mm
X-Axis Rapid Traverse	15 m/min
Z-Axis Rapid Traverse	15 m/min
Cutting Feed Rate	0.1–5000 m/min
XZ Linear Guideway	45 Roller Type
XZ Lead Screw Diameter	φ40 mm
X-Axis Motor Power / Torque	1.6 kW / 10 Nm
Z-Axis Motor Power / Torque	2.4 kW / 15 Nm
Main Motor Power / Torque	11 kW / 15–140 Nm
Overall Dimensions (L × W × H)	1.8 × 1.85 × 2.7 m
Machine Weight	4500 kg

This product supports customized solutions for different machining requirements:

· CNC system configuration adjustment according to operation needs
· Spindle specifications customization for different workpieces
· Travel range adjustment based on machining size requirements
· Protective structure customization for different working environments
· Fixture and tooling solutions according to production requirements

Item	Details
MOQ	1 set
Standard Lead Time	Around 30 days
Payment Terms	30% T/T deposit, balance before shipment
Shipping Terms	FOB Shanghai, CIF or customized trade terms
Shipping Method	Sea shipment from Shanghai Port
Packaging	Protective wooden case packaging

Standard CNC machines are available for shorter delivery cycles, while special configurations such as 5-axis machines and gantry machining centers are produced according to customer orders.

Each machine is inspected before shipment. The company provides a 12-month whole machine warranty excluding wearing parts, 24-hour online technical support and quality feedback response within 24 hours.

Q1: What materials can VTC5060 High-Precision Vertical Lathe with Tailstock process?

A: It can process various metal materials including steel, cast iron, and other commonly used engineering materials for rotary component manufacturing.

Q2: What type of parts is this vertical turning center suitable for?

A: It is mainly used for machining shaft parts, disc parts, and other rotary components requiring high precision and stable production efficiency.

Q3: What CNC systems can be configured for this machine?

A: The CNC system can be customized according to customer requirements. Specific configurations can be discussed based on processing needs.

Q4: Does the machine support customized solutions for special workpieces?

A: Yes. Spindle, travel range, protection structure, and other configurations can be adjusted according to drawings and production requirements.

Q5: How is after-sales support provided for VTC5060 High-Precision Vertical Lathe with Tailstock?

A: We provide 24-hour online technical support and respond to quality feedback within 24 hours with remote troubleshooting guidance.
