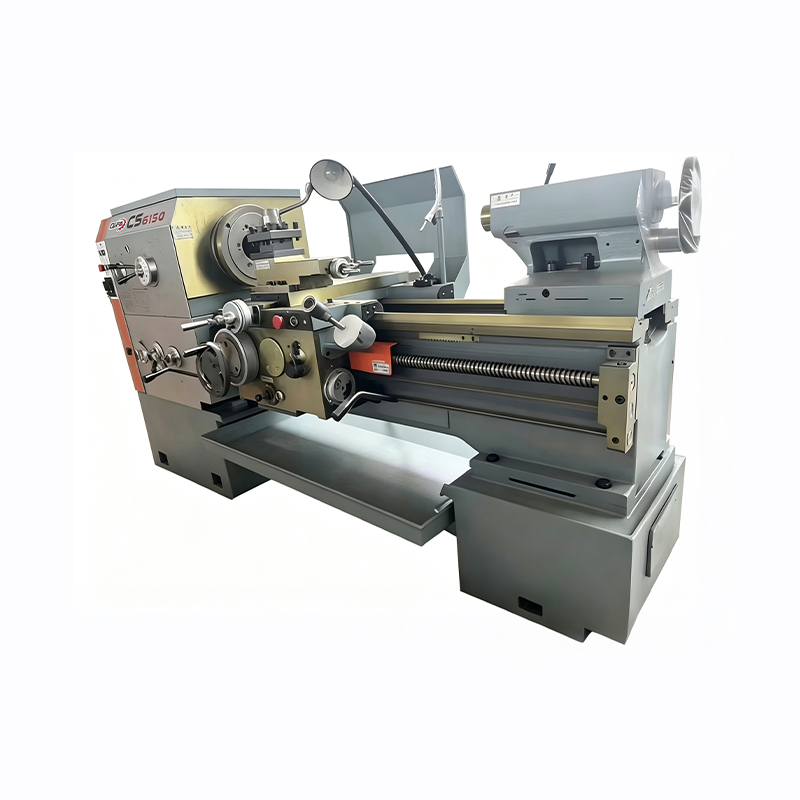

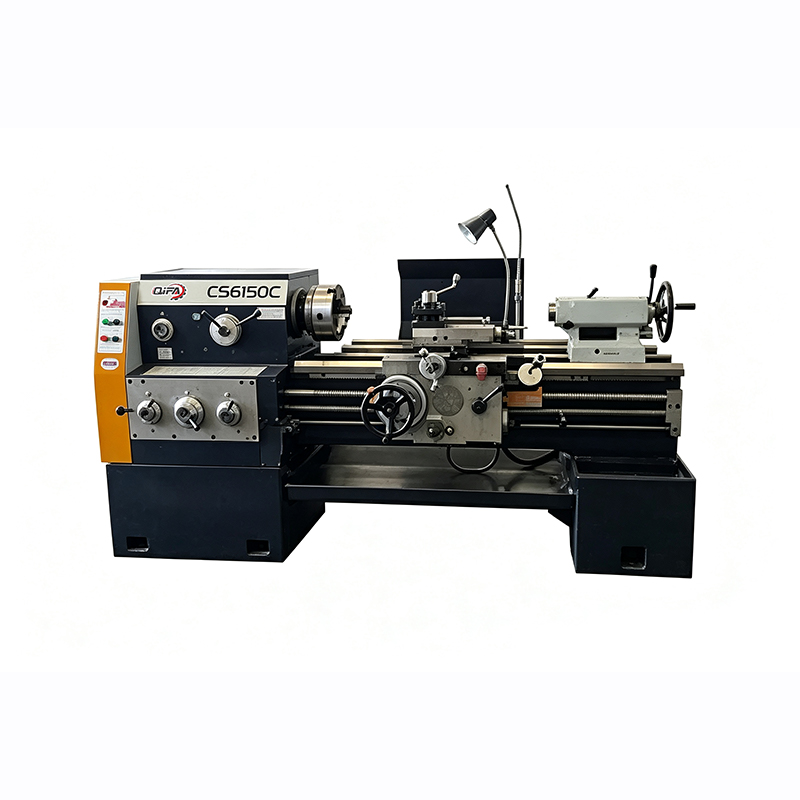

CS6150 / CS6150B / CS6150C Heavy-Duty Horizontal Lathe

CS6150 / CS6150B / CS6150C Heavy-Duty Horizontal Lathe is suitable for machining various industrial components, including:

· Turning shafts, sleeves, bushings and other cylindrical components
· External and internal machining of steel, cast iron and non-ferrous metals
· Metric, inch, module and diametral pitch thread machining
· Drilling, reaming and oil groove machining
· General machining for machinery and light industrial applications

Energy-Efficient Operation
The CS6150 / CS6150B / CS6150C Heavy-Duty Horizontal Lathe adjusts motor output according to machining conditions to reduce reactive power loss. Electronic soft start and braking support controlled machine operation.

Rigid Machining Structure
The machine uses high-strength cast iron for the bed and main structural parts. Three-dimensional modeling and finite element analysis are applied to the overall layout and key structures to support rigidity and machining stability.

Flexible Turning Capacity
The machine provides a Φ500 mm maximum swing over bed and Φ710 mm maximum swing over gap. Maximum workpiece lengths are available from 750 mm to 3000 mm, with corresponding maximum turning lengths from 700 mm to 2950 mm.

Threading and Feed Capability
The transmission system supports common metric, inch, module and diametral pitch threads. The 12 mm longitudinal screw pitch and cross rapid traverse speed of 1.9 m/min at 50 Hz or 2.3 m/min at 60 Hz support routine machining operations.

CS6150 / CS6150B / CS6150C Heavy-Duty Horizontal Lathe supports customized solutions for different machining requirements:

· CNC system customization according to production needs
· Spindle configuration adjustment for different workpieces
· Turning length and machine structure customization
· Optional braking and feeding system configurations
· Special tooling and accessory solutions based on application requirements

Standard CNC machines are available for shorter delivery cycles, while special configurations such as 5-axis machines and gantry machining centers are produced according to customer orders.

Each machine is inspected before shipment. The company provides a 12-month whole machine warranty excluding wearing parts, 24-hour online technical support and quality feedback response within 24 hours.
