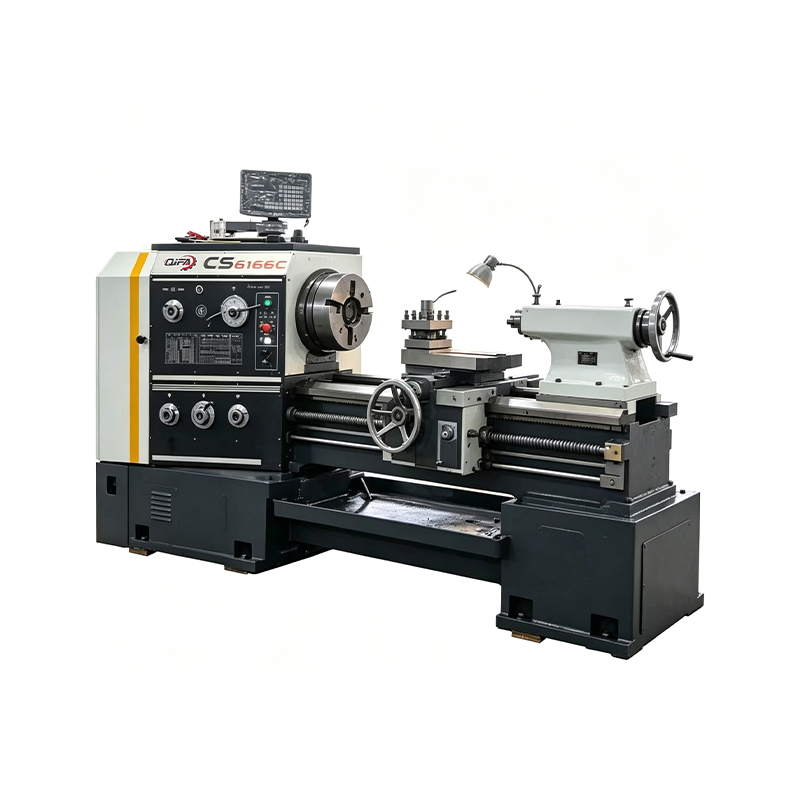

CS6166B / CS6166C High-Rigidity Horizontal Lathe

CS6166B / CS6166C High-Rigidity Horizontal Lathe is suitable for machining various industrial components, including:

· Turning shafts, sleeves and other cylindrical components
· Machining external and internal cylindrical surfaces
· Face turning and machining of other rotary surfaces
· Cutting metric, inch, module and diametral-pitch threads
· Drilling, reaming and oil groove machining

Energy-efficient drive system
The machine adjusts motor output according to machining conditions to reduce reactive power loss. Electronic soft start and braking functions are also provided.

Rigid machine structure
The bed and legs are made from high-strength cast iron and undergo aging treatment. Three-dimensional modeling and finite element analysis are used to optimize the main structure for stable cutting performance.

Hardened precision guideways
The bed guideways are induction hardened and precision ground to improve wear resistance and maintain machining accuracy during long-term operation.

Flexible threading capability
The transmission system supports common metric, inch, module and diametral-pitch threads, making the machine suitable for varied general machining requirements.

Long workpiece capacity
Available maximum workpiece lengths range from 750 mm to 3000 mm, providing configuration options for different shaft and component sizes.

Practical tooling and support
CS6166B / CS6166C High-Rigidity Horizontal Lathe uses a 4-position tool post with a maximum tool size of 25 × 25 mm. The tailstock sleeve measures Φ75 × 150 mm for supporting workpieces during machining.

CS6166B / CS6166C High-Rigidity Horizontal Lathe supports customized solutions for different machining requirements:

· Spindle bore and configuration adjustment according to workpiece requirements
· Customized voltage options for different markets
· Tool post and accessory configuration selection
· Machine protection and safety structure customization
· Additional supporting equipment according to production conditions

Standard CNC machines are available for shorter delivery cycles, while special configurations such as 5-axis machines and gantry machining centers are produced according to customer orders.

Each machine is inspected before shipment. The company provides a 12-month whole machine warranty excluding wearing parts, 24-hour online technical support and quality feedback response within 24 hours.
