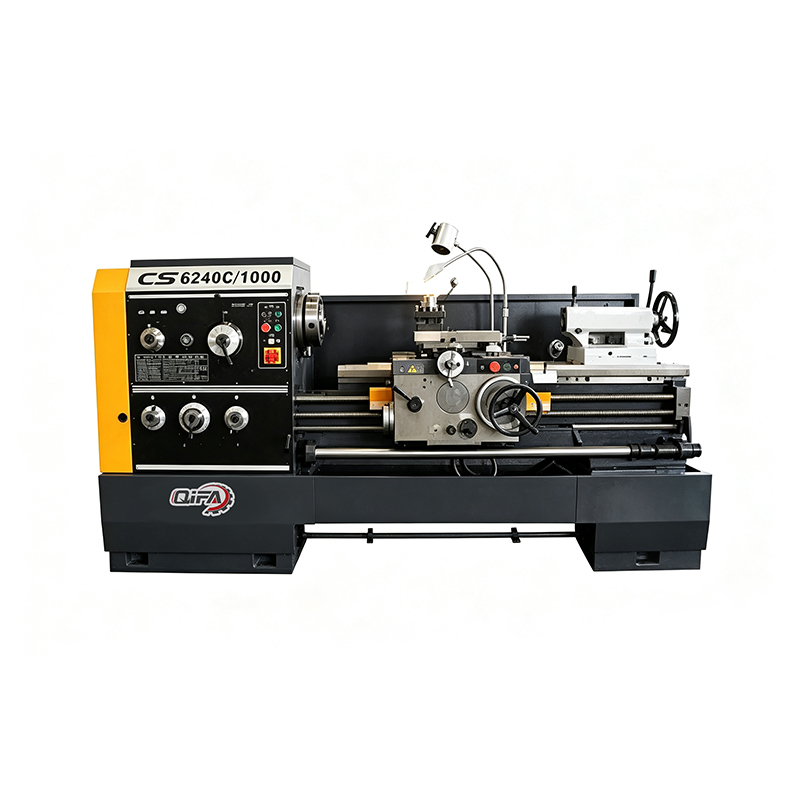

CS6240 Gap-bed Horizontal Lathe

CS6240 Gap-bed Horizontal Lathe is suitable for machining various industrial components, including:

· Turning shafts, bushings and cylindrical mechanical components
· Machining internal and external cylindrical surfaces
· Cutting metric, inch, module and diametral-pitch threads
· Drilling, reaming and oil groove machining
· General machining for mechanical and light industrial parts

Energy-efficient operation
The machine can adjust motor output according to machining conditions, helping reduce reactive power losses during operation.

Gap-bed machining capability
The gap structure provides a maximum swing over gap of 630 mm and an effective gap length of 240 mm, supporting larger-diameter workpieces than the standard bed area.

Flexible turning capacity
The machine supports workpiece lengths from 750 to 3000 mm, with maximum turning lengths from 700 to 2950 mm depending on configuration.

Threading and feed transmission
The transmission system supports common metric, inch, module and diametral-pitch threads. The 12 mm longitudinal screw pitch supports controlled longitudinal feeding.

Stable guideway structure
The bed is manufactured from high-strength cast iron. The guideways are hardened and precision ground to support long-term dimensional stability.

Modular configuration
CS6240 Gap-bed Horizontal Lathe can be configured with different tool posts, electrical specifications, steady rests and protective structures according to project requirements.

CS6240 Gap-bed Horizontal Lathe supports customized solutions for different machining requirements:

· Spindle configuration adjustment
· Customized machining length and travel range
· Different thread processing requirements
· CNC system upgrade options
· Additional protective and auxiliary equipment

Standard CNC machines are available for shorter delivery cycles, while special configurations such as 5-axis machines and gantry machining centers are produced according to customer orders.

Each machine is inspected before shipment. The company provides a 12-month whole machine warranty excluding wearing parts, 24-hour online technical support and quality feedback response within 24 hours.
