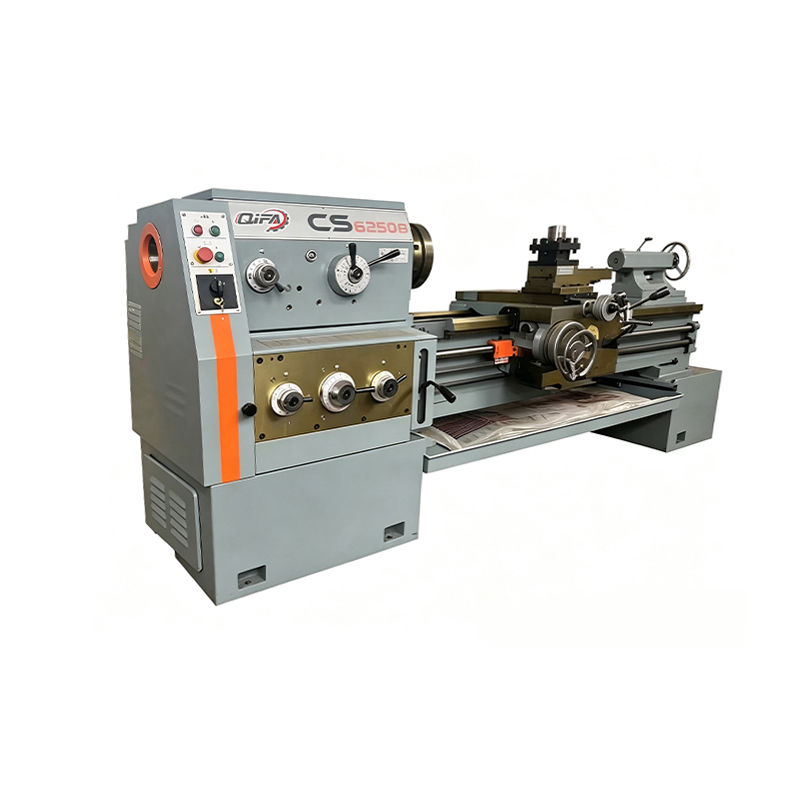

CS6250 / CS6250B / CS6250C Gap-bed Heavy-Duty Horizontal Lathe

CS6250 / CS6250B / CS6250C Gap-bed Heavy-Duty Horizontal Lathe is suitable for machining various industrial components, including:

· Turning shafts, sleeves, bushings and other cylindrical parts
· Machining steel, cast iron and non-ferrous metal components
· Internal and external turning of larger-diameter workpieces
· Metric, inch, module and diametral pitch thread machining
· Drilling, reaming and oil groove machining

Large-Diameter Turning
The CS6250 / CS6250B / CS6250C Gap-bed Heavy-Duty Horizontal Lathe provides a maximum swing over bed of Φ500 mm and a maximum swing over gap of Φ710 mm, making it suitable for turning larger-diameter workpieces.

Gap-bed Machining
The 240 mm effective gap length provides additional machining clearance near the spindle nose. This configuration is useful when the workpiece diameter exceeds the normal turning area of the bed.

Multi-Type Thread Cutting
The machine supports metric, inch, module and diametral pitch threads, allowing manufacturers to handle different thread specifications without using a dedicated threading machine.

Extended Workpiece Capacity
Depending on the selected configuration, the machine accommodates workpiece lengths of 750, 1000, 1500, 2000 or 3000 mm, with maximum turning lengths from 700 to 2950 mm.

Flexible Tooling
The machine has 4 tool positions and supports 25 × 25 mm tool sizes. The square tool post can rotate within ±90°, providing flexibility for different turning operations.

Energy-Saving Drive Control
The drive system can adjust motor output according to machining conditions to reduce reactive power loss. Electronic soft start and braking functions are also available for controlled machine operation.

CS6250 / CS6250B / CS6250C Gap-bed Heavy-Duty Horizontal Lathe supports customized solutions for different machining requirements:

· CNC system customization based on production needs
· Spindle configuration adjustment for different workpieces
· Customized turning length and machine specifications
· Optional feeding and braking system configurations
· Special tooling and accessories according to application requirements

Standard CNC machines are available for shorter delivery cycles, while special configurations such as 5-axis machines and gantry machining centers are produced according to customer orders.

Each machine is inspected before shipment. The company provides a 12-month whole machine warranty excluding wearing parts, 24-hour online technical support and quality feedback response within 24 hours.
